Valentia Bench

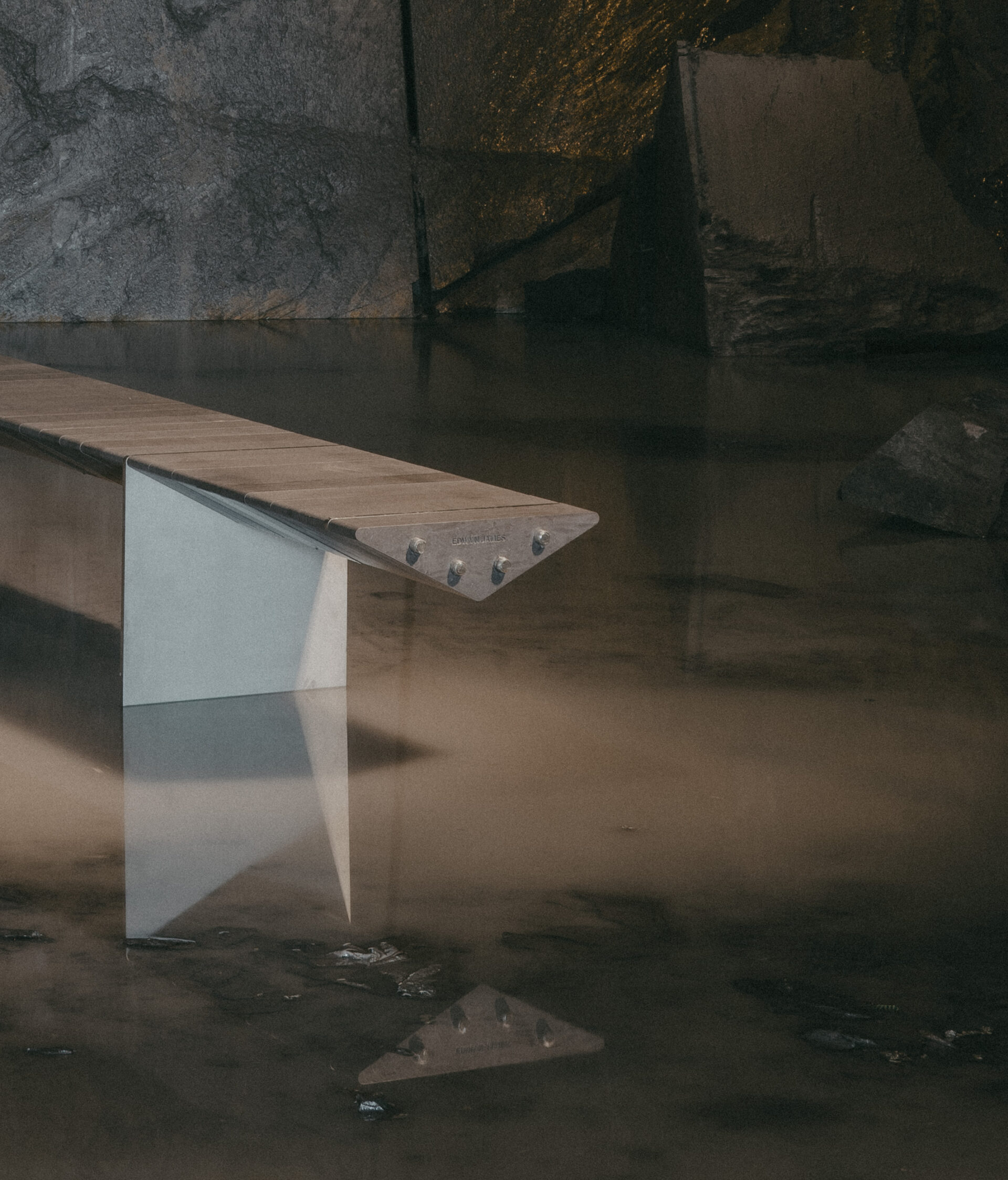

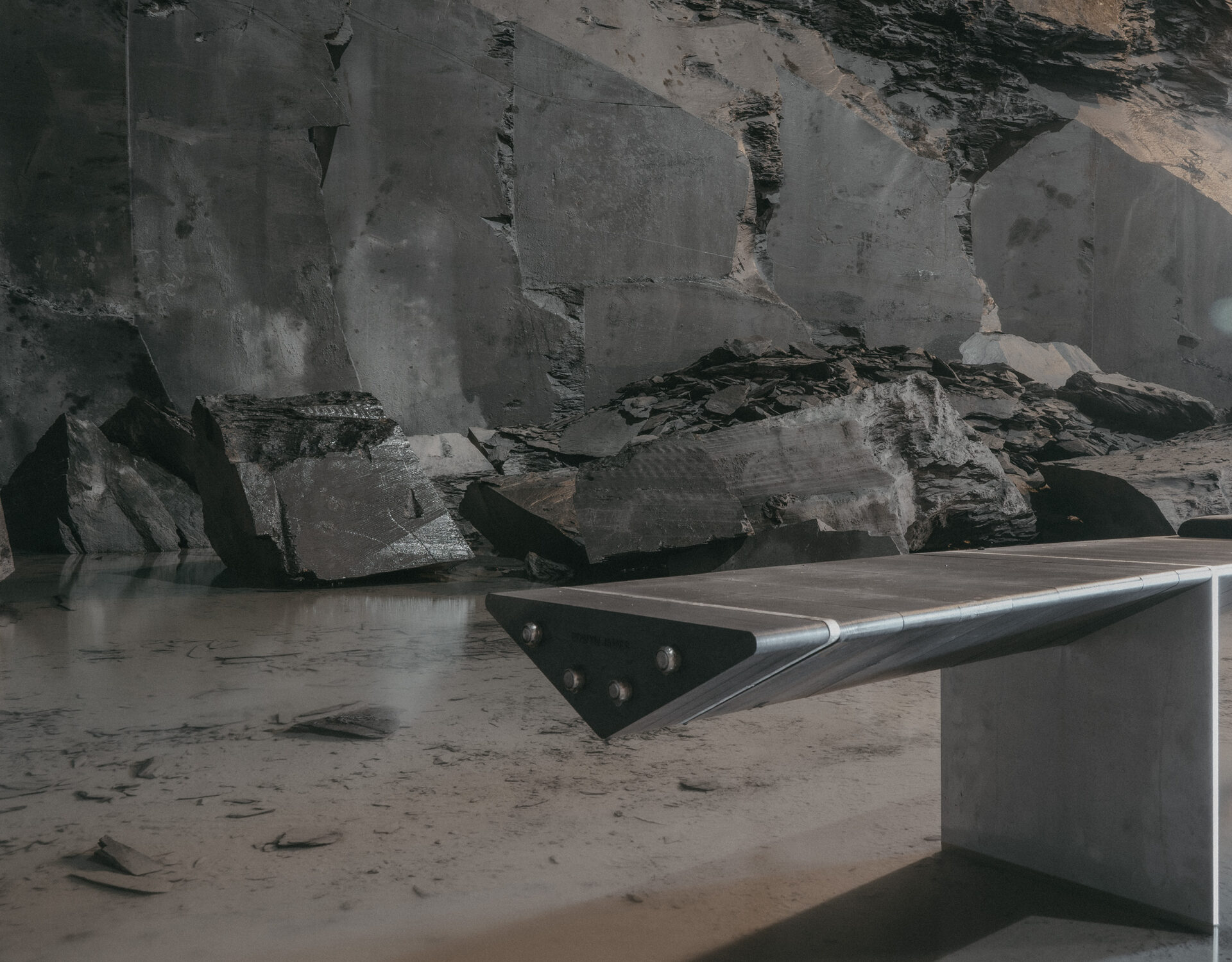

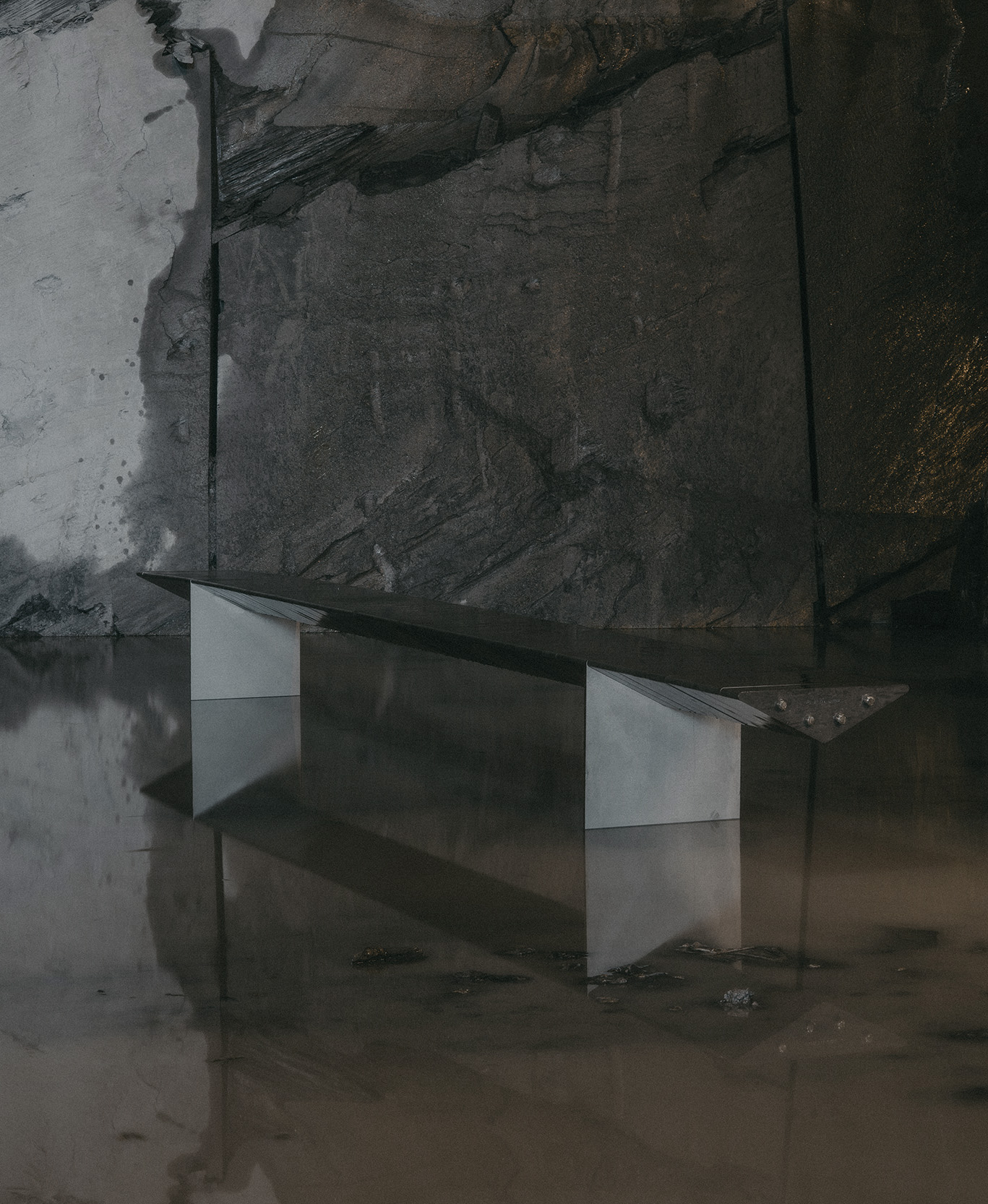

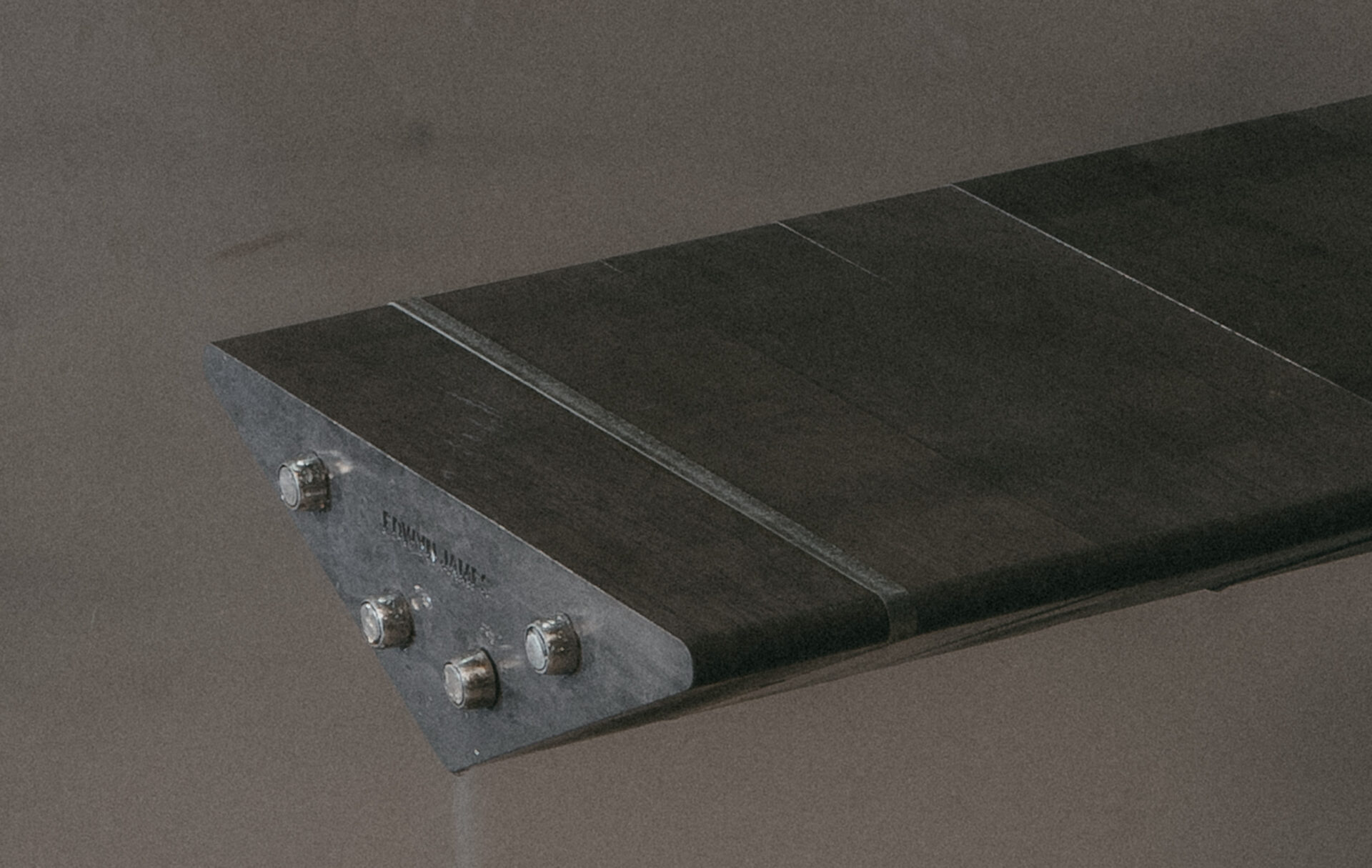

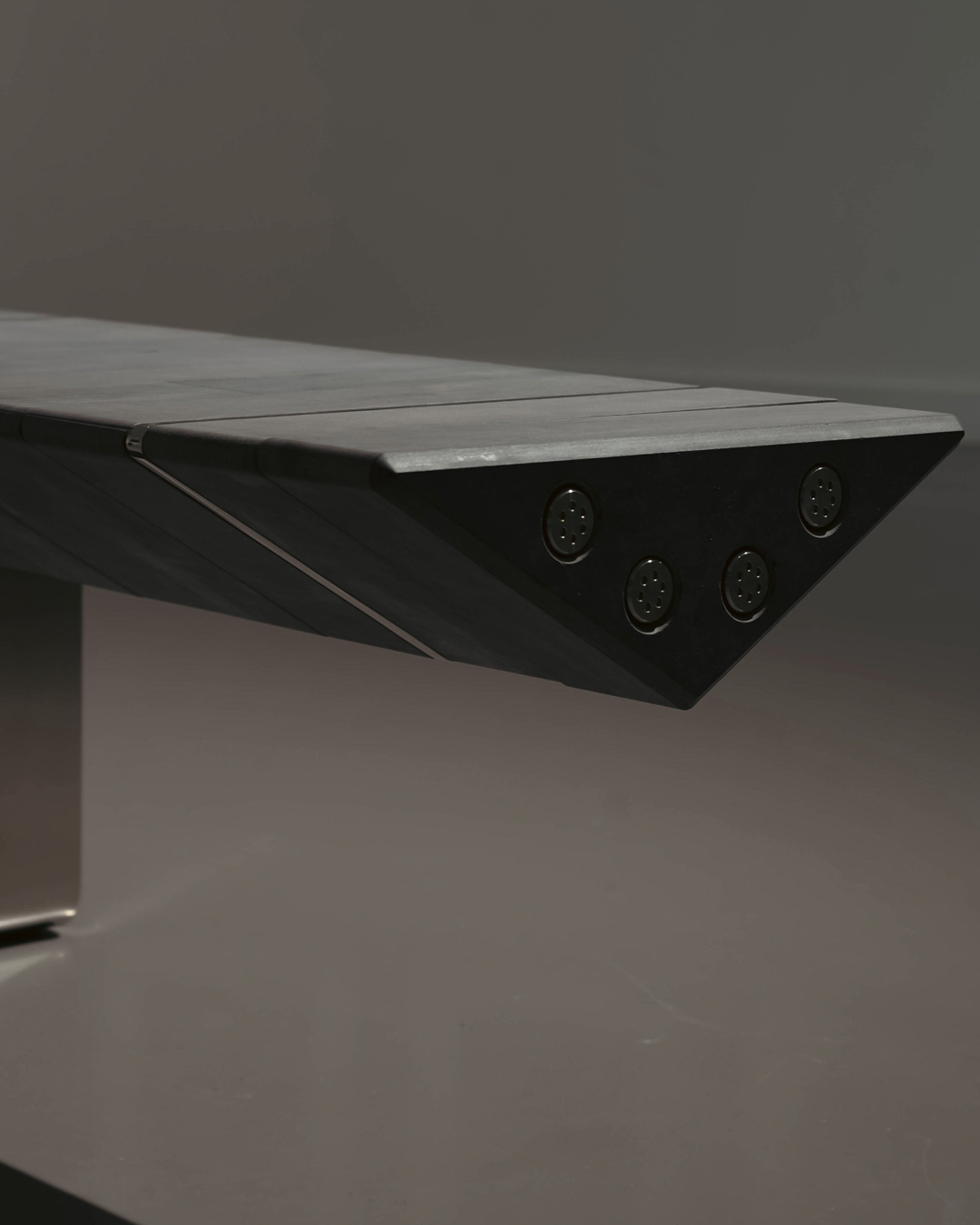

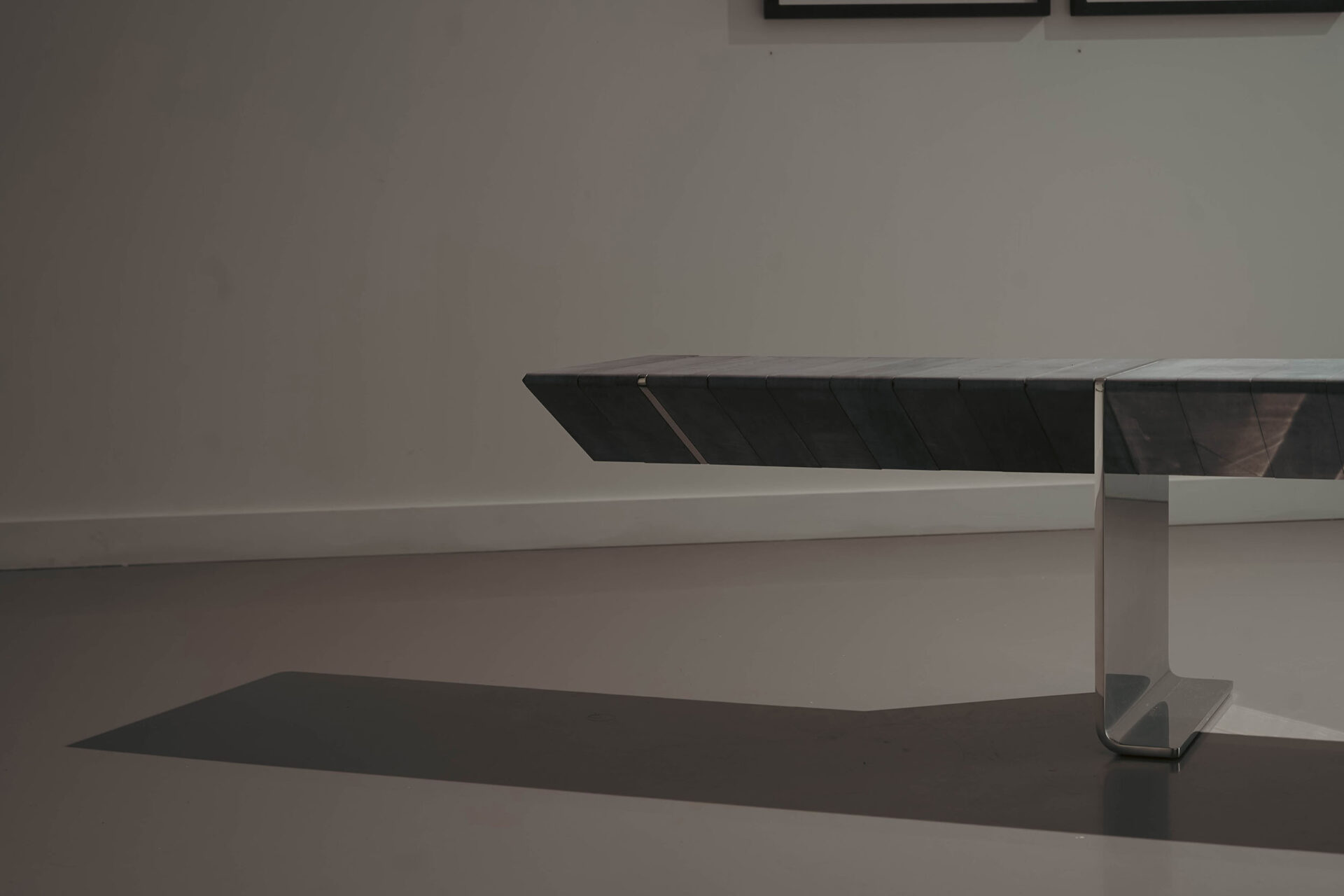

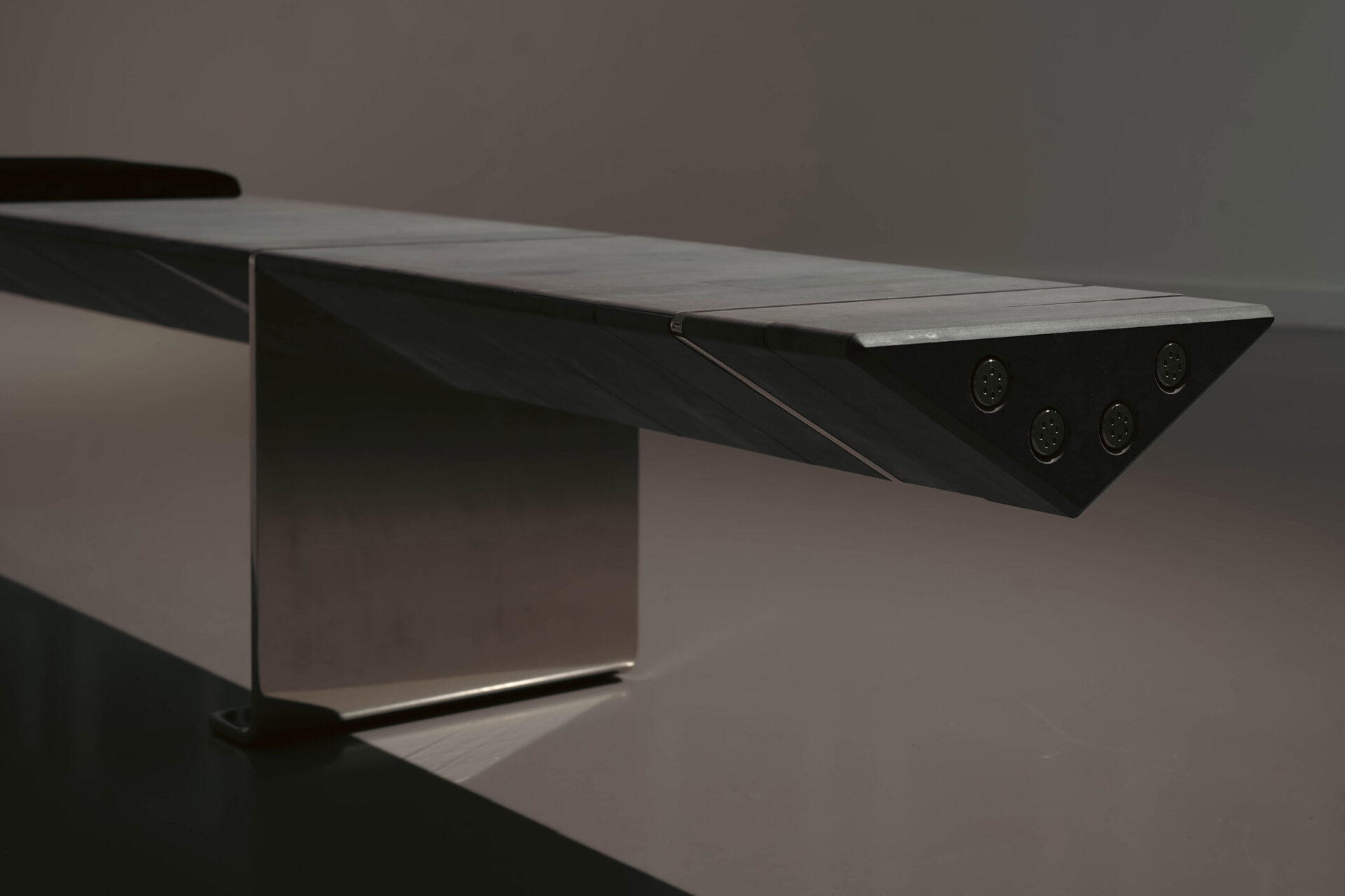

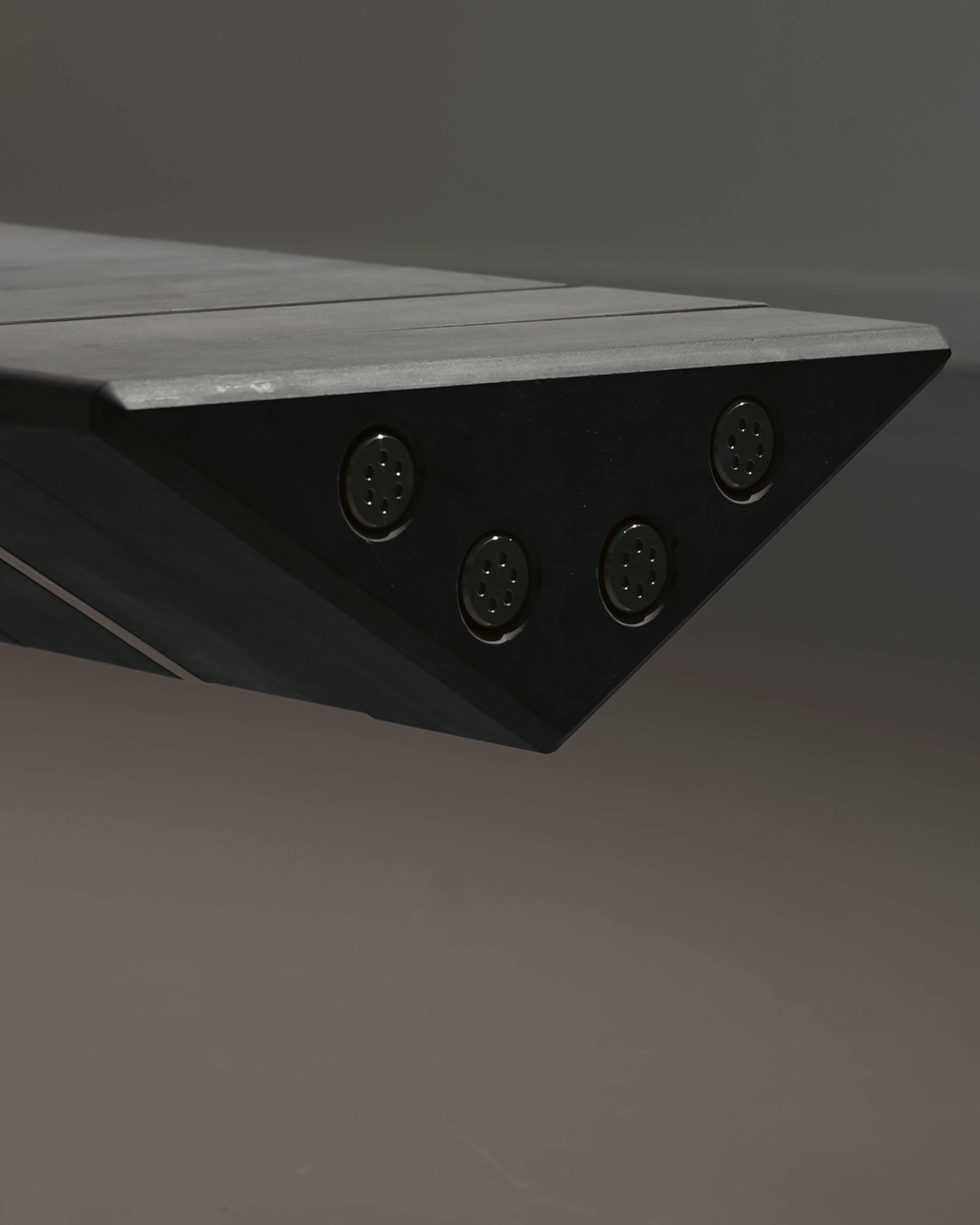

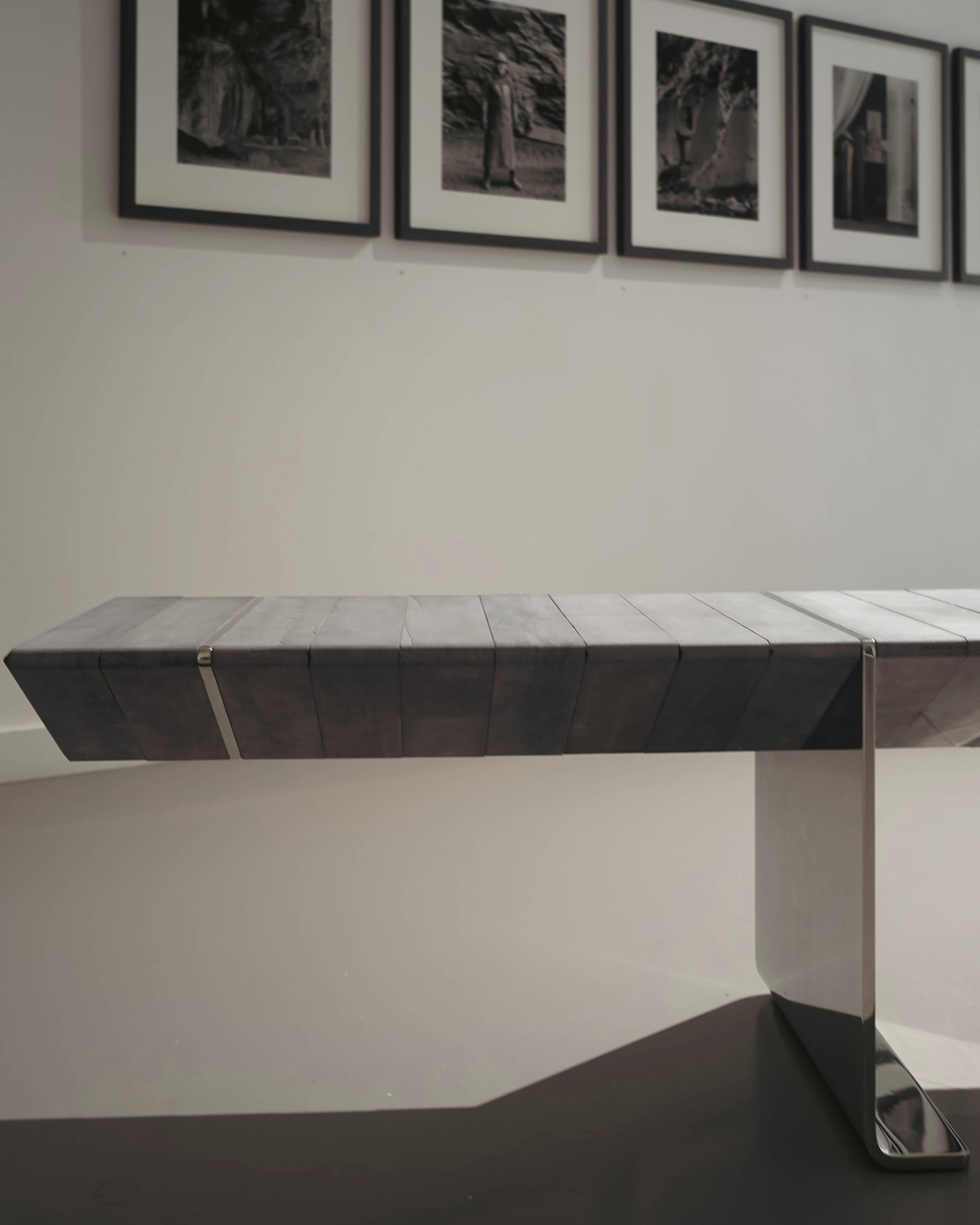

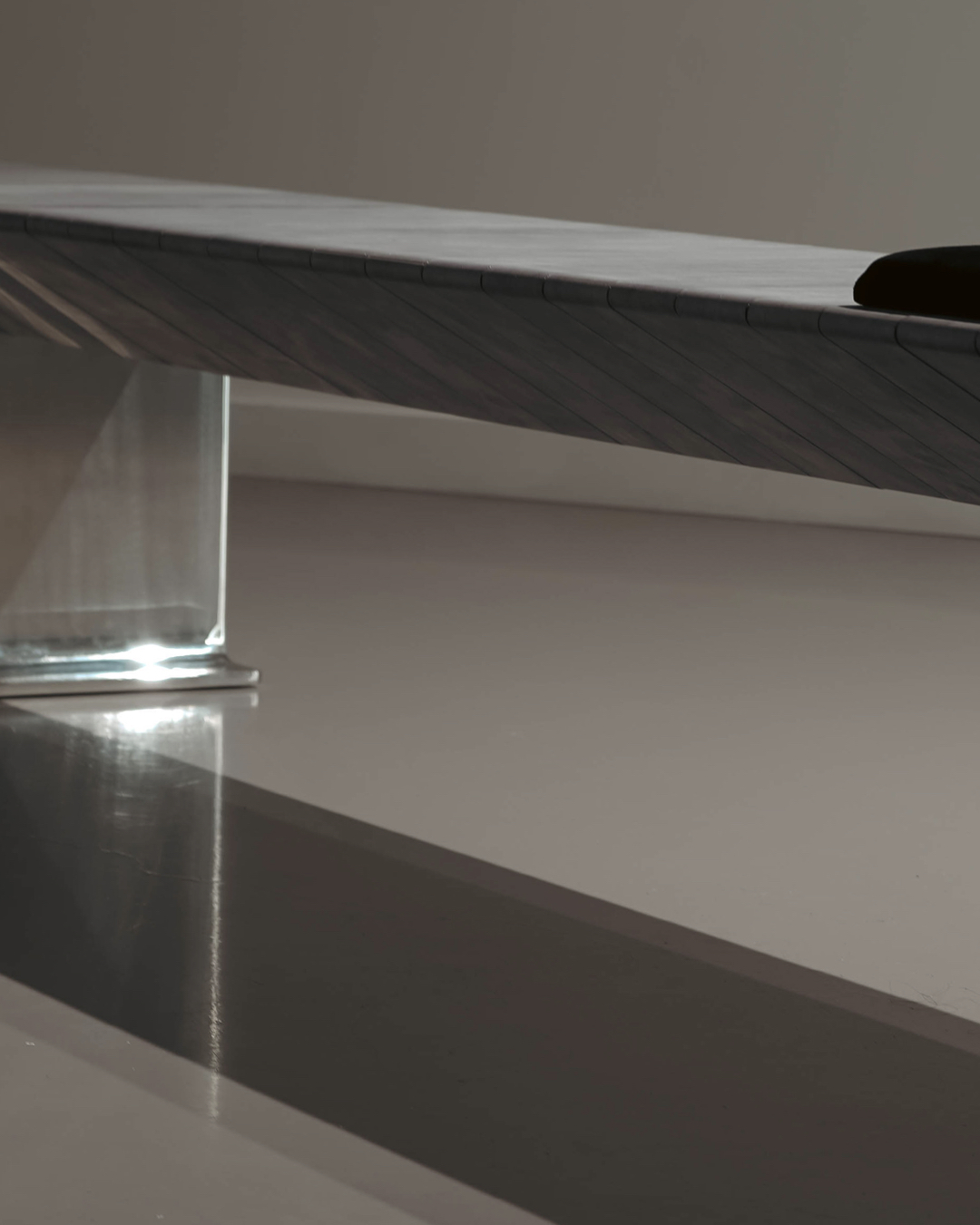

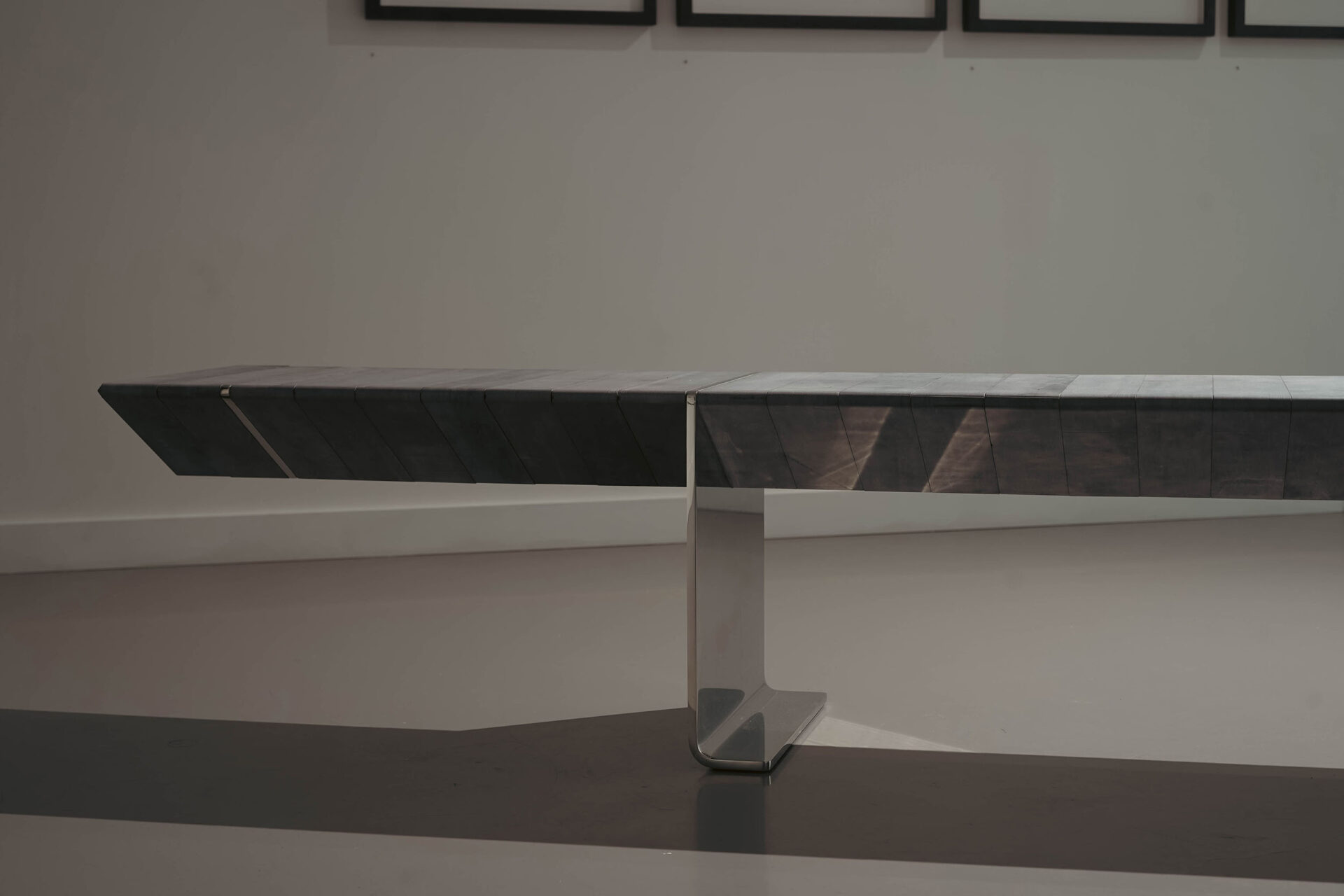

The Valentia Slate Bench is engineered as a structural system rather than a singular object. Composed of 56 slate modules, each weighing approximately 6 kg, the bench is post-tensioned using stainless steel threaded bars to form a continuous load-bearing assembly. The design primarily engages the compressive capacity of Valentia Slate, with post-tensioning used to bind the individual elements into a unified structural whole and to introduce stability across the span. Through this approach, the inherent strength of the material is harnessed and extended beyond conventional applications. The result is a piece that operates as a demonstration of engineering potential, where fabrication logic and material expression are inseparable.

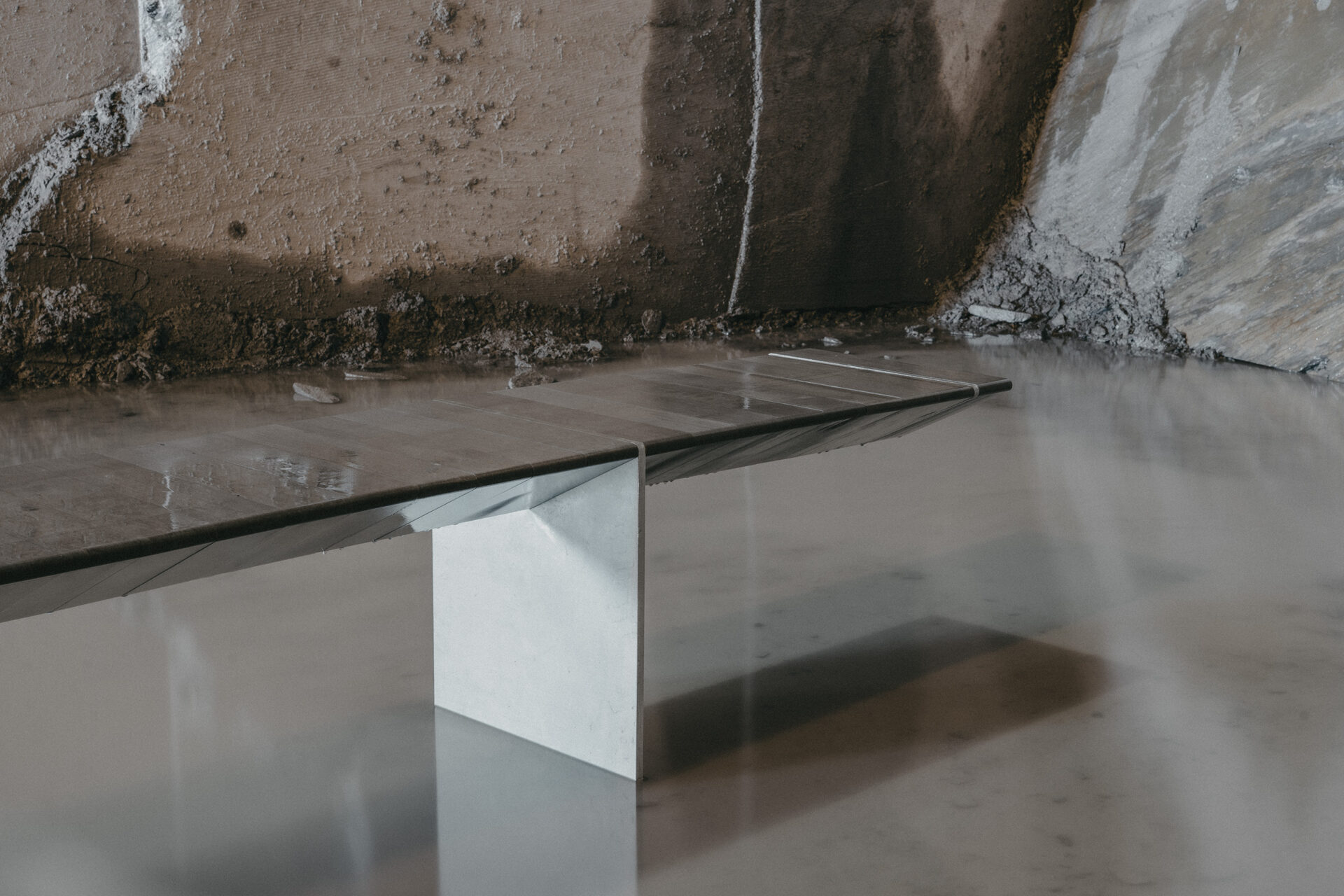

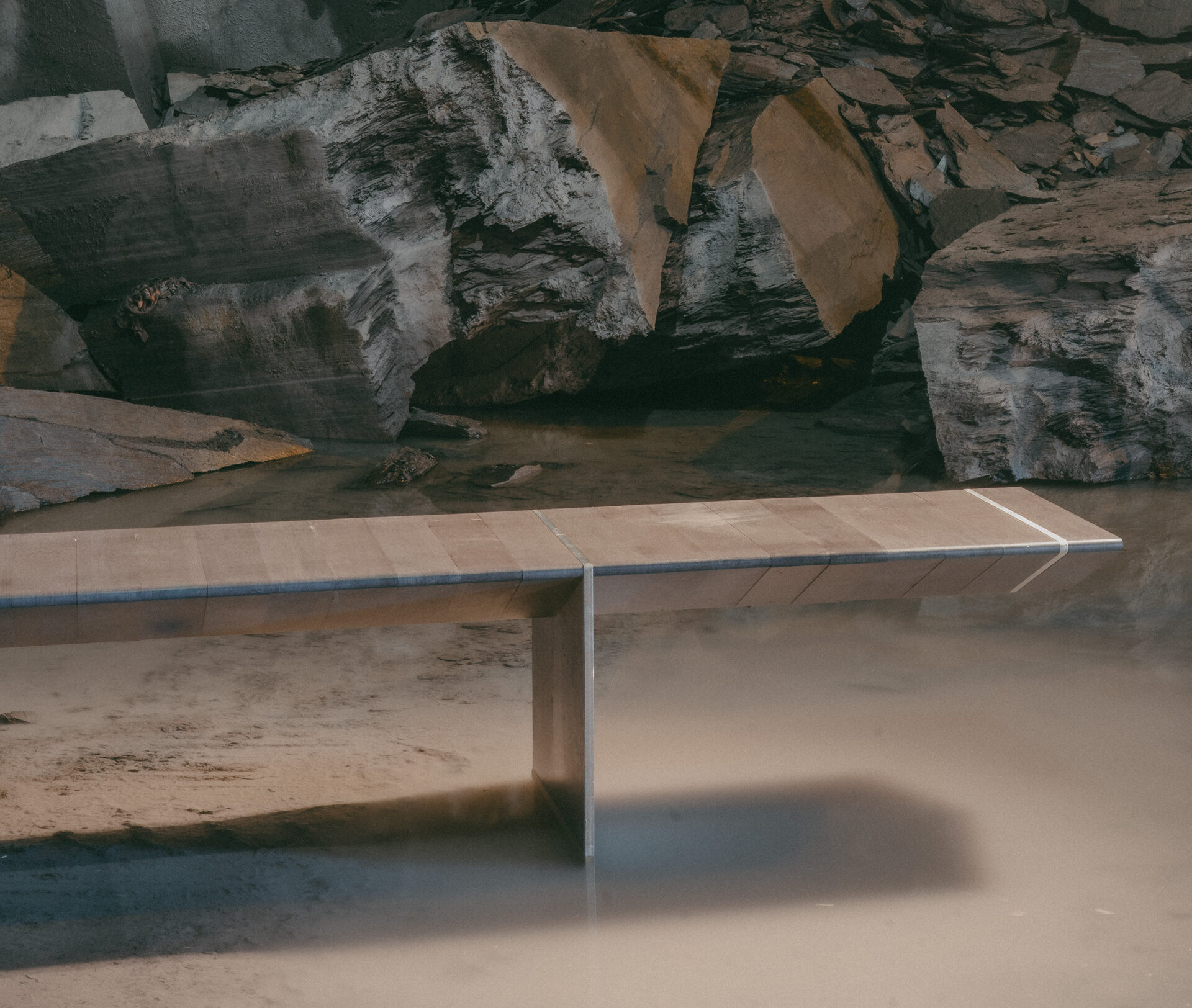

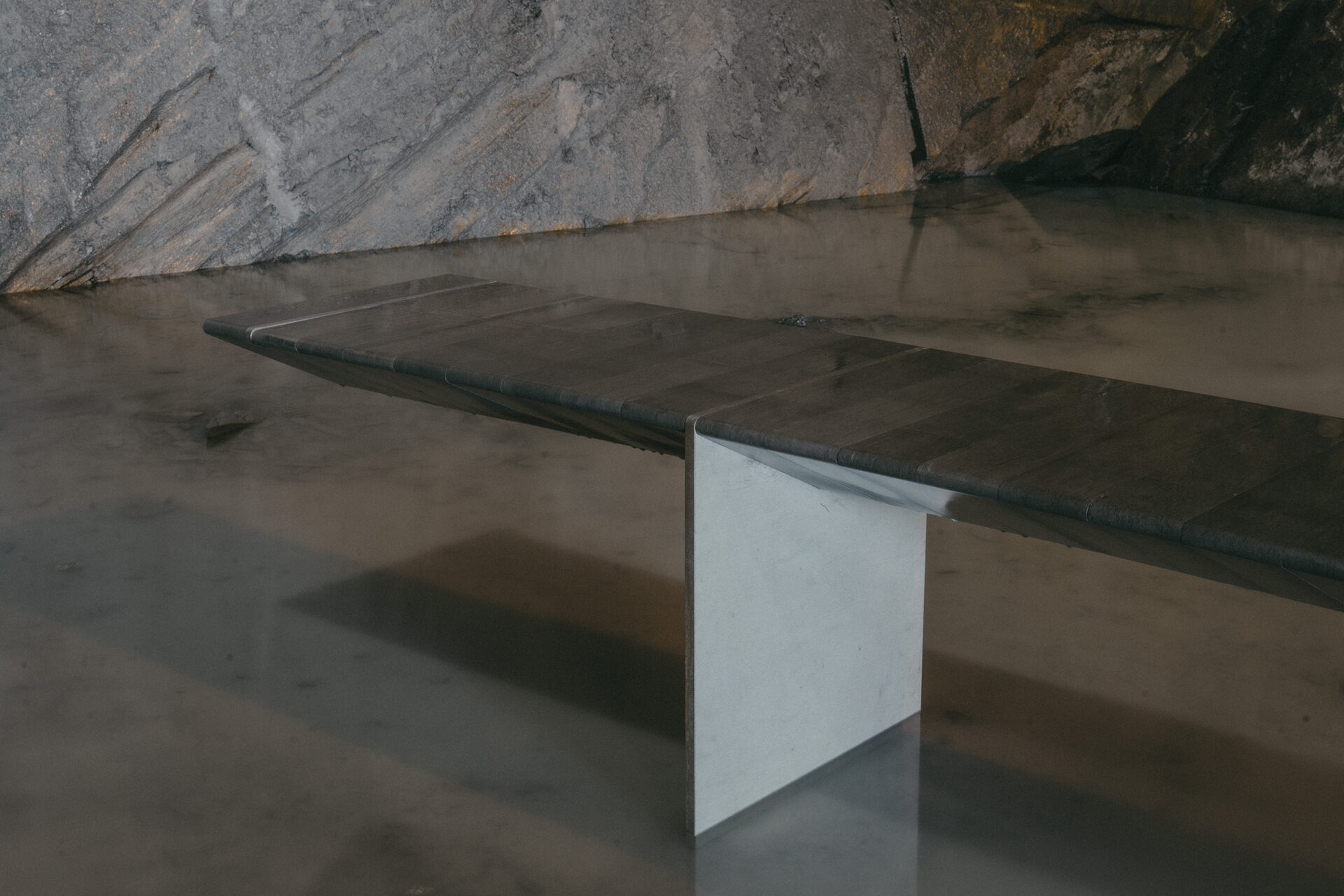

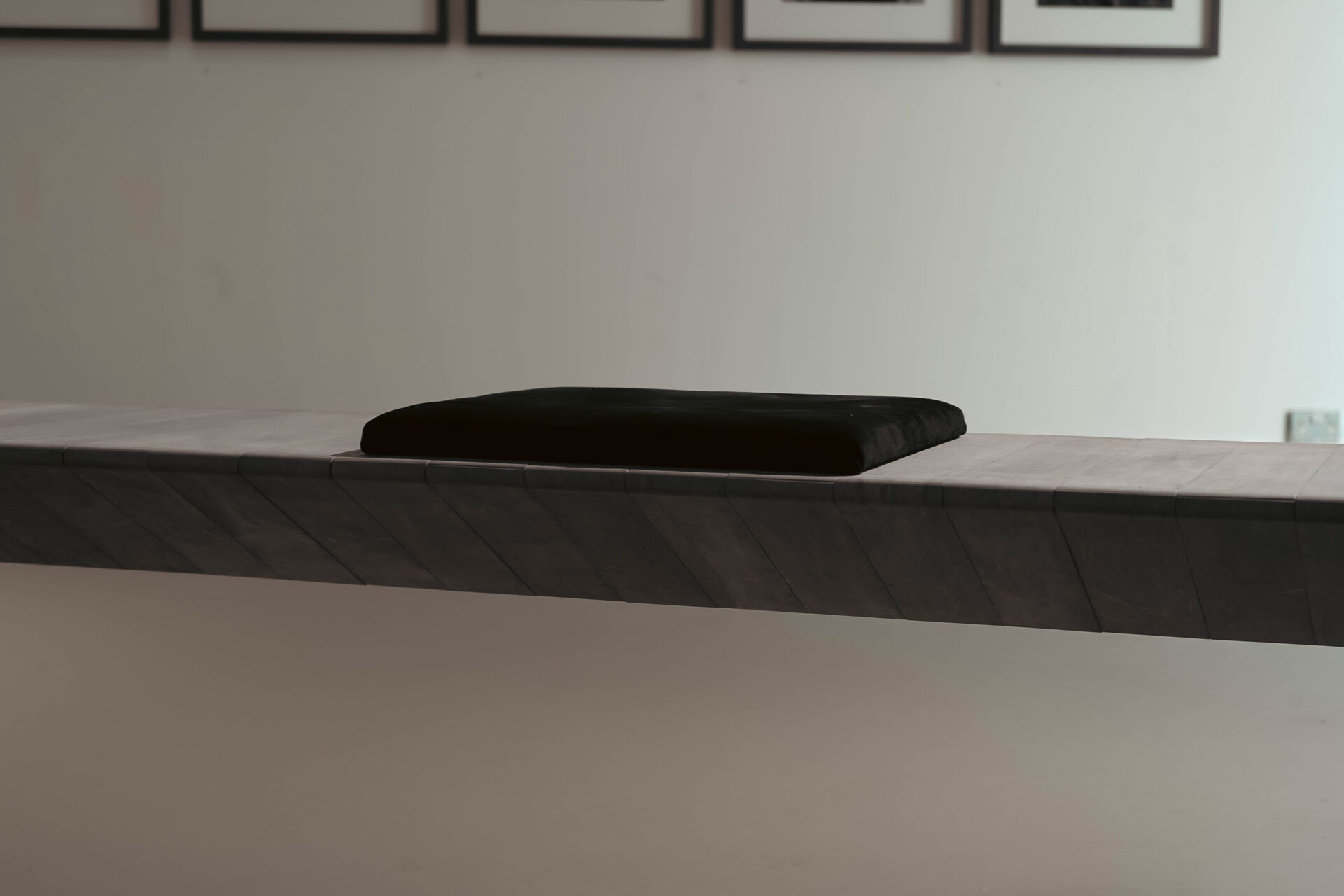

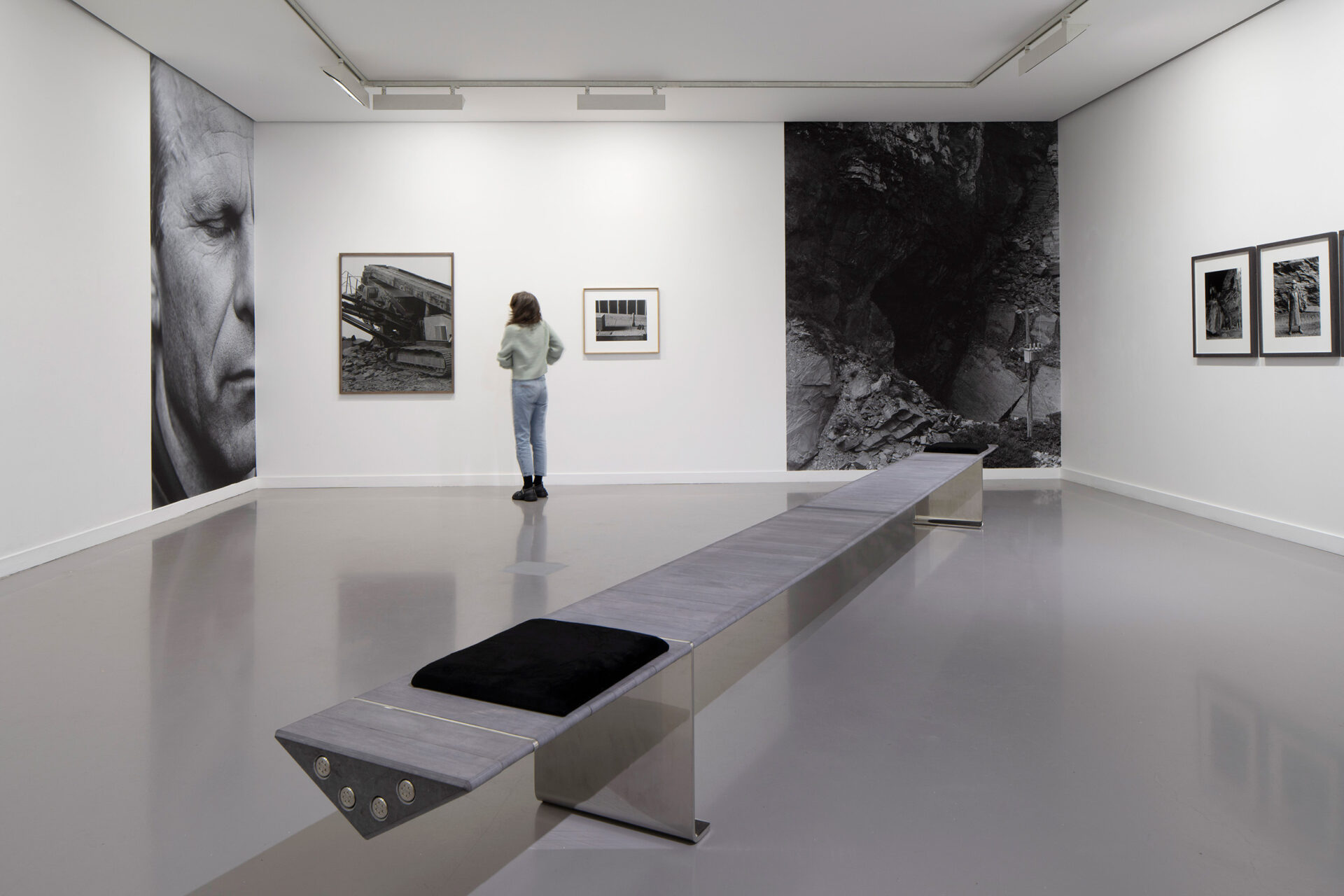

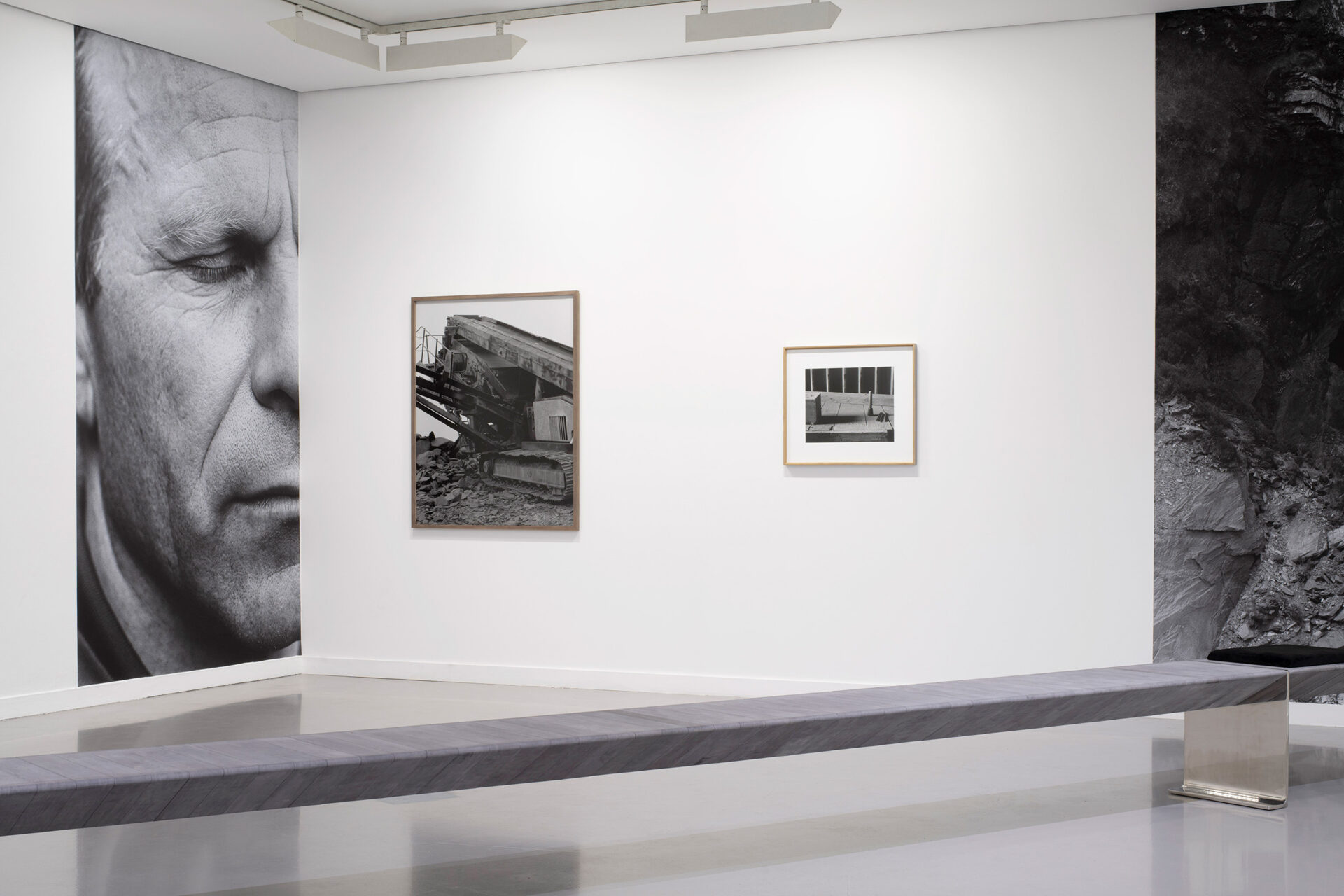

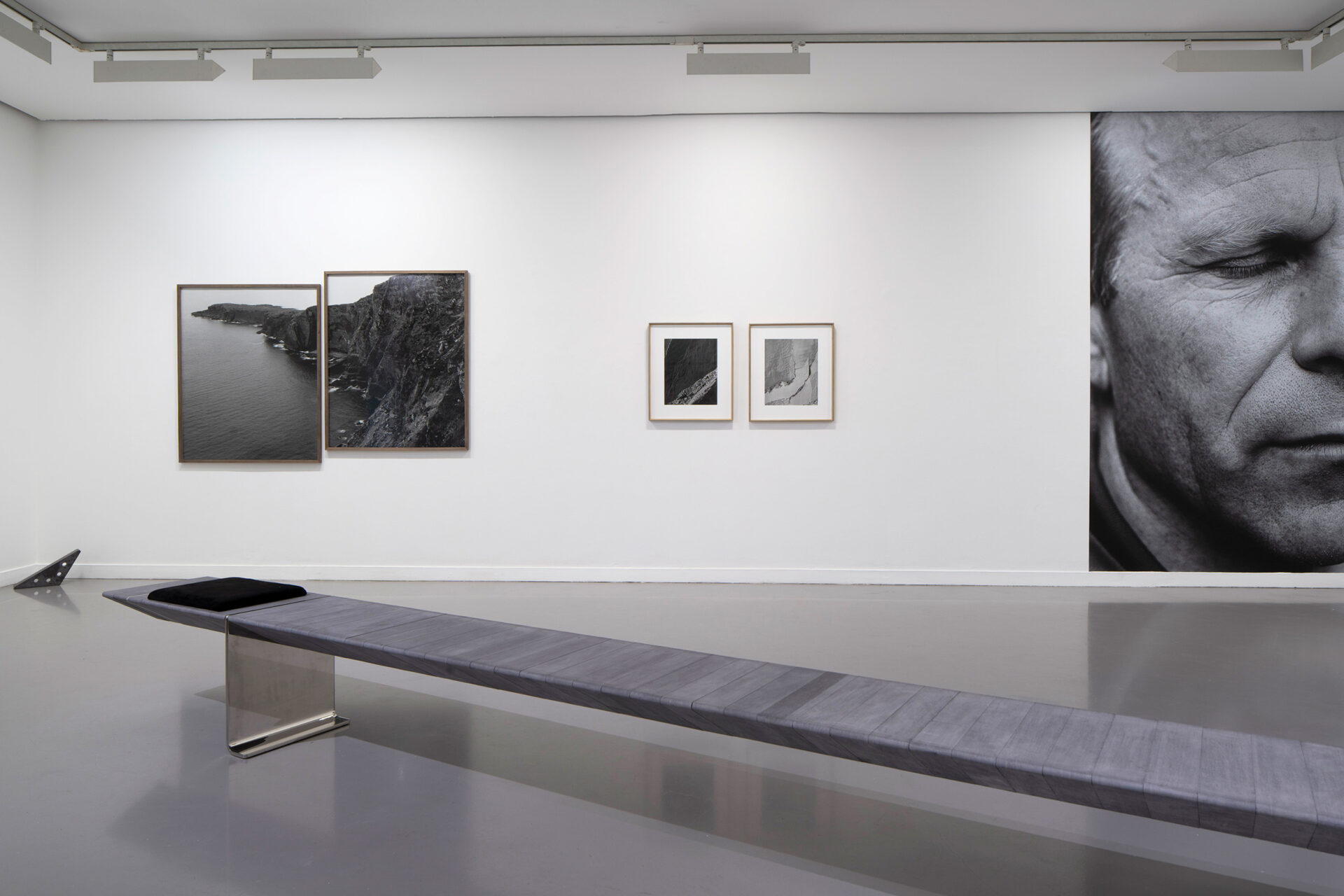

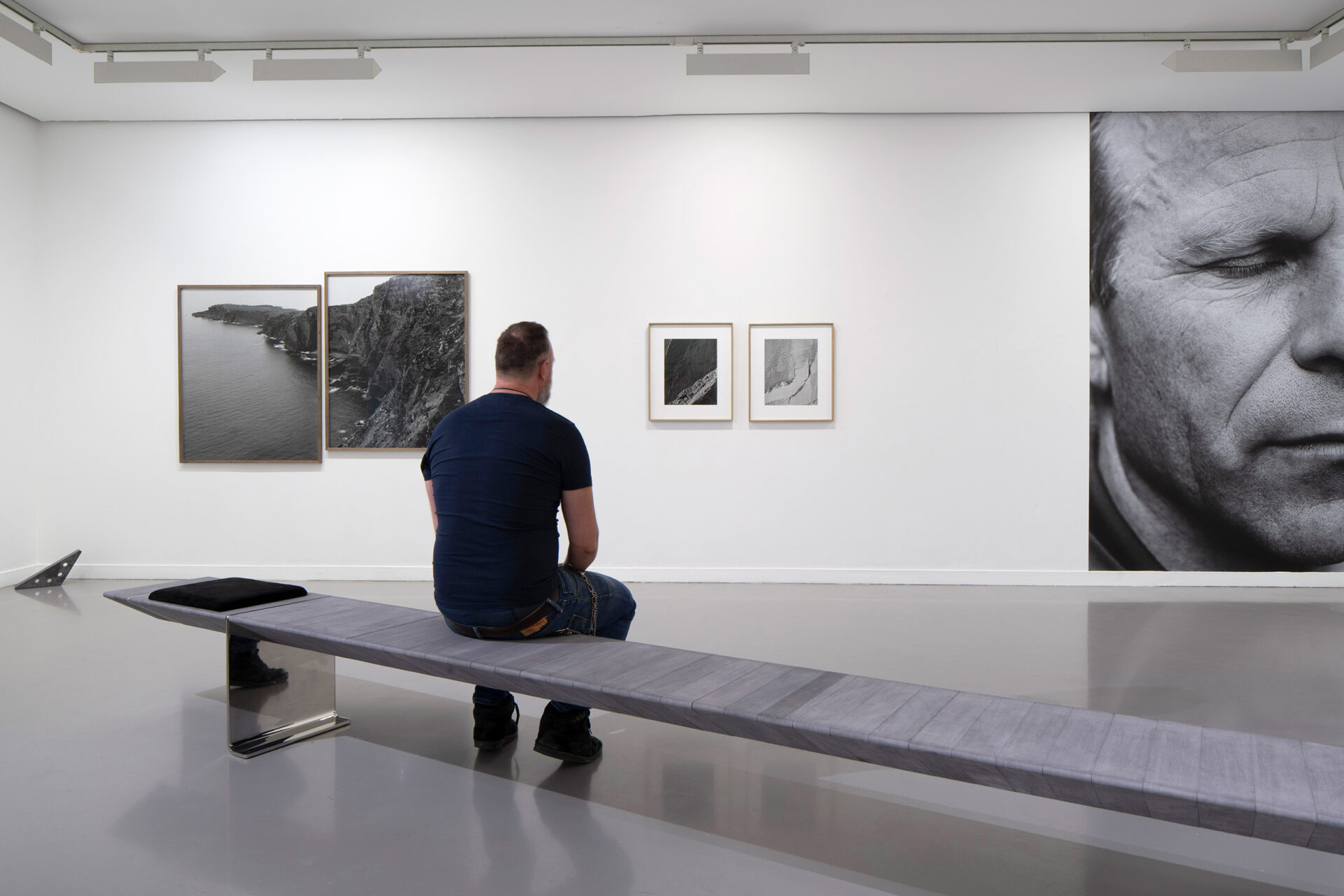

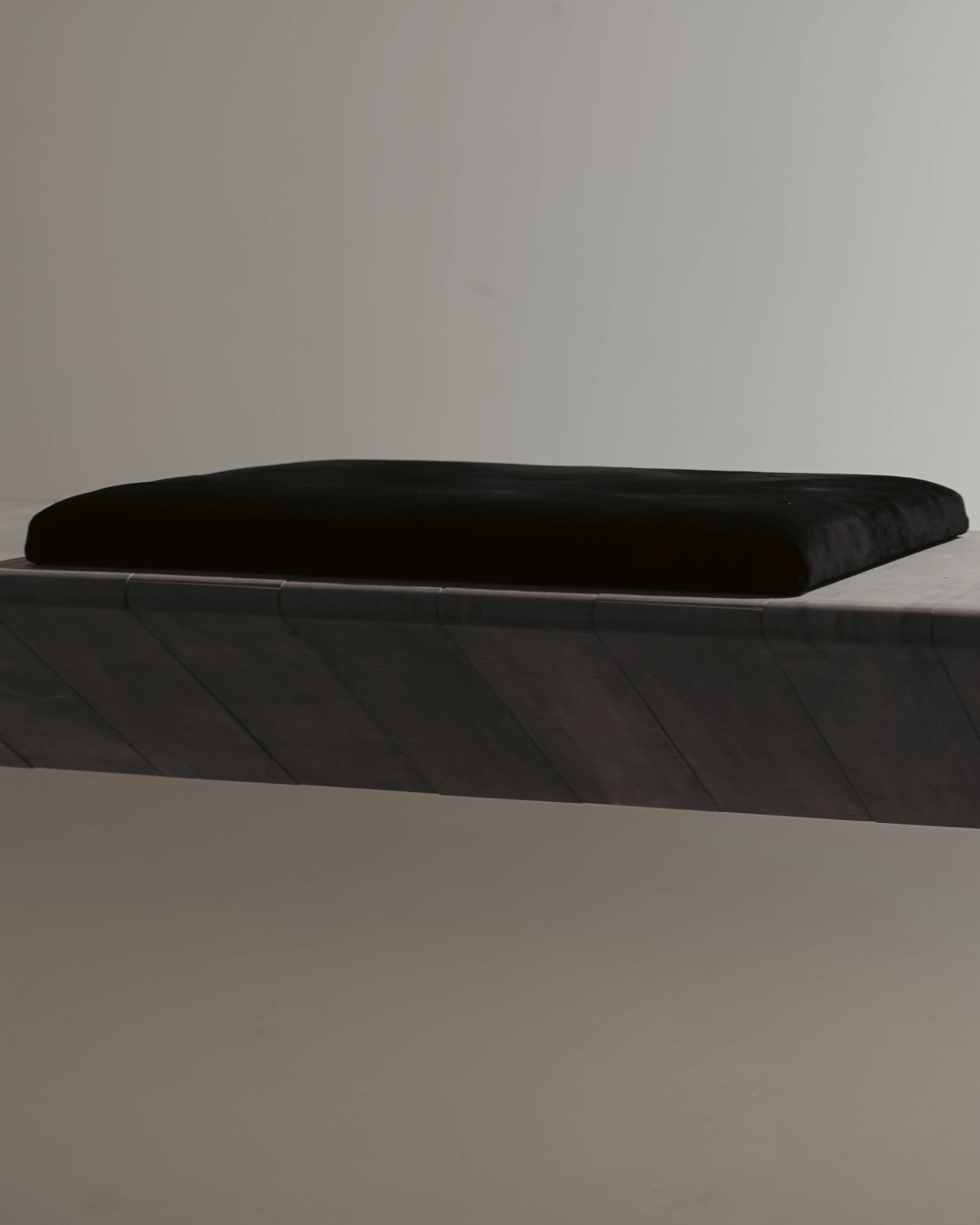

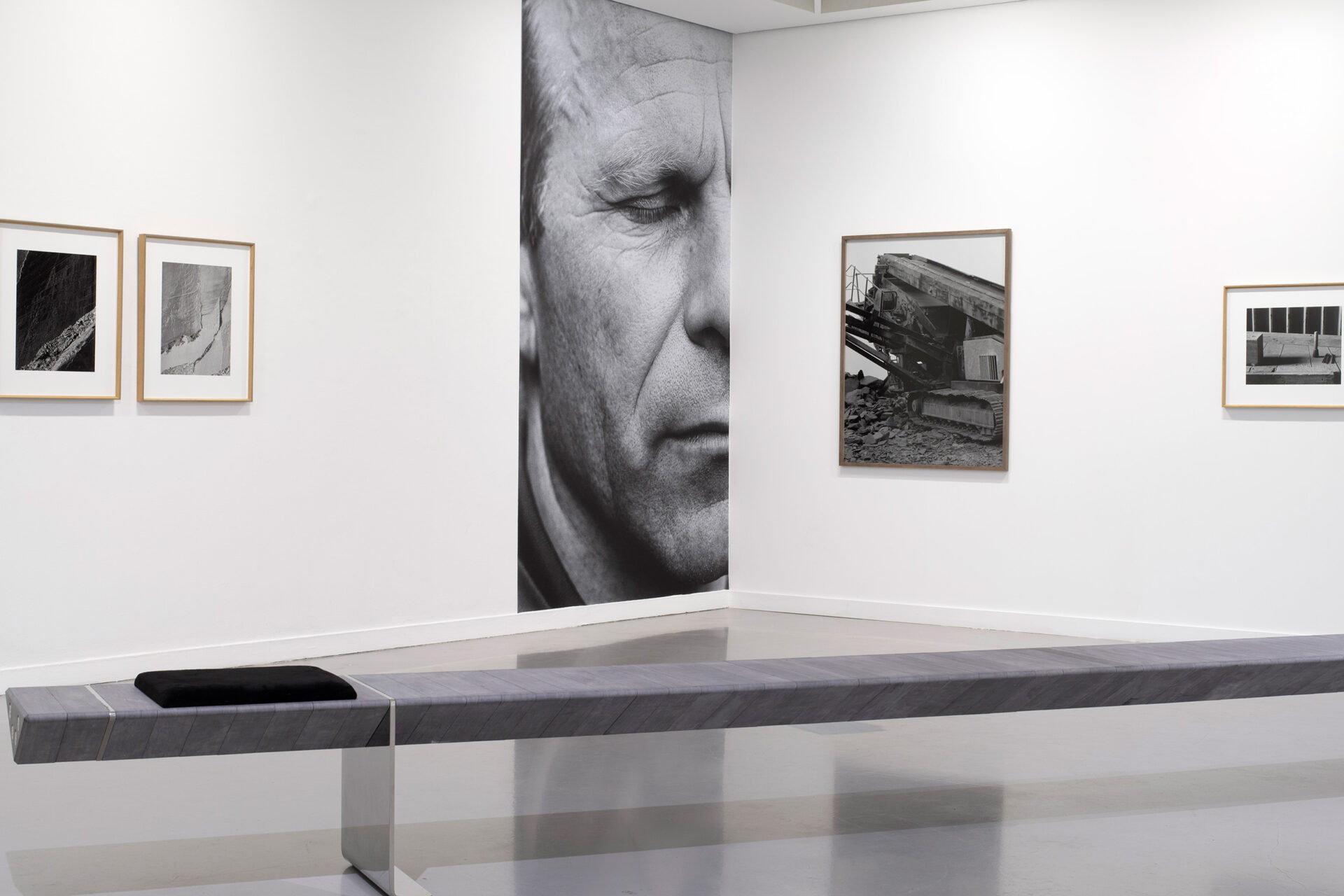

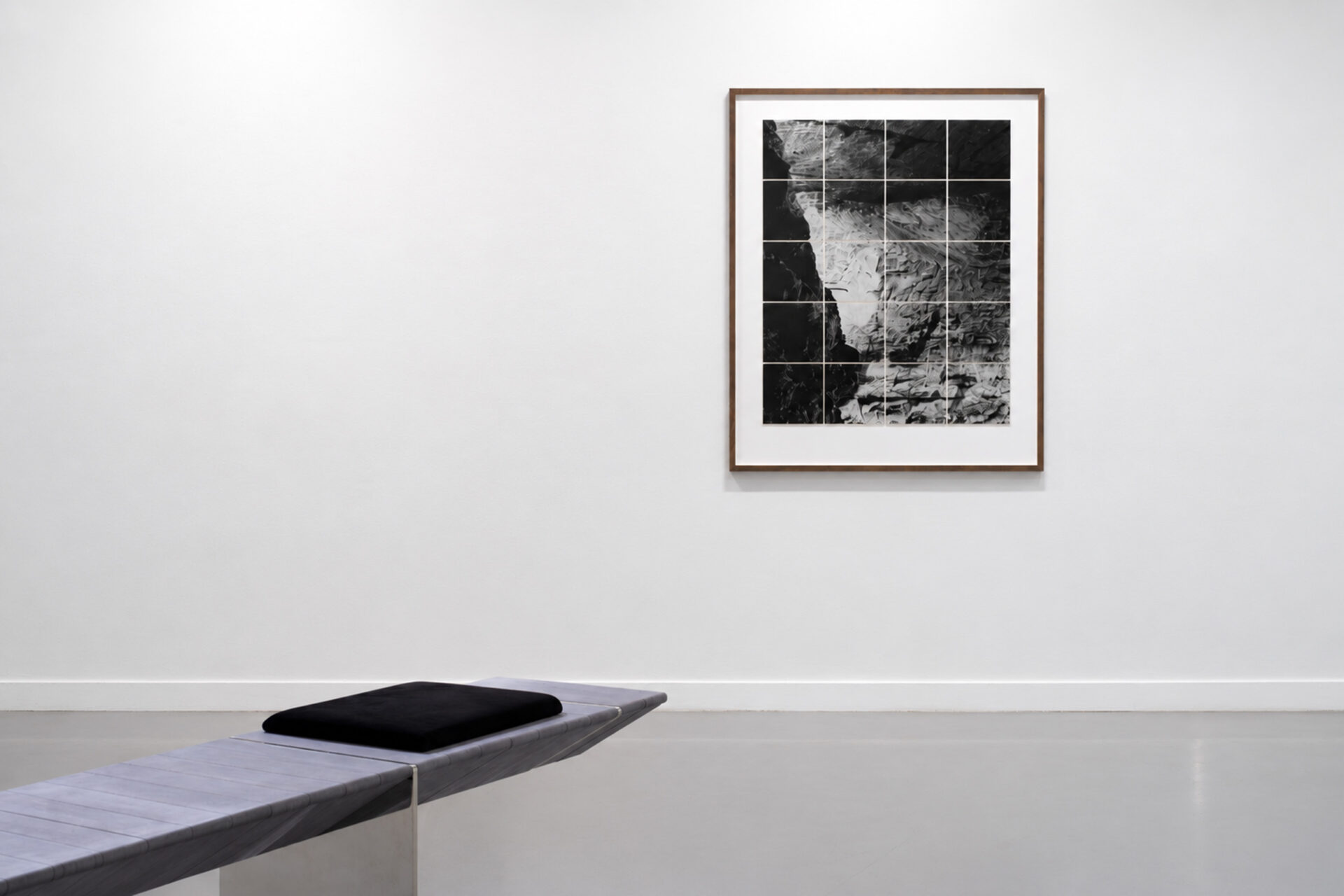

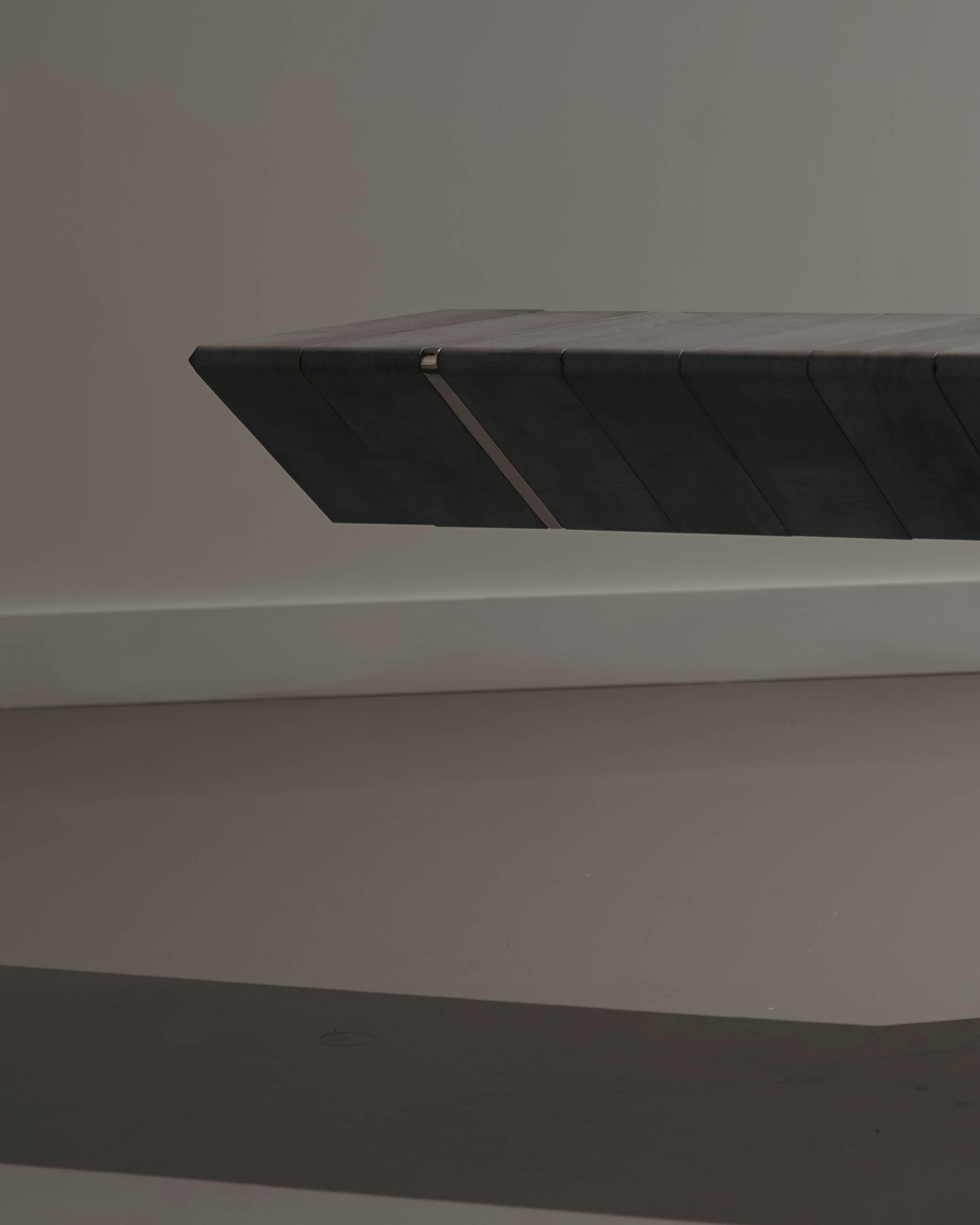

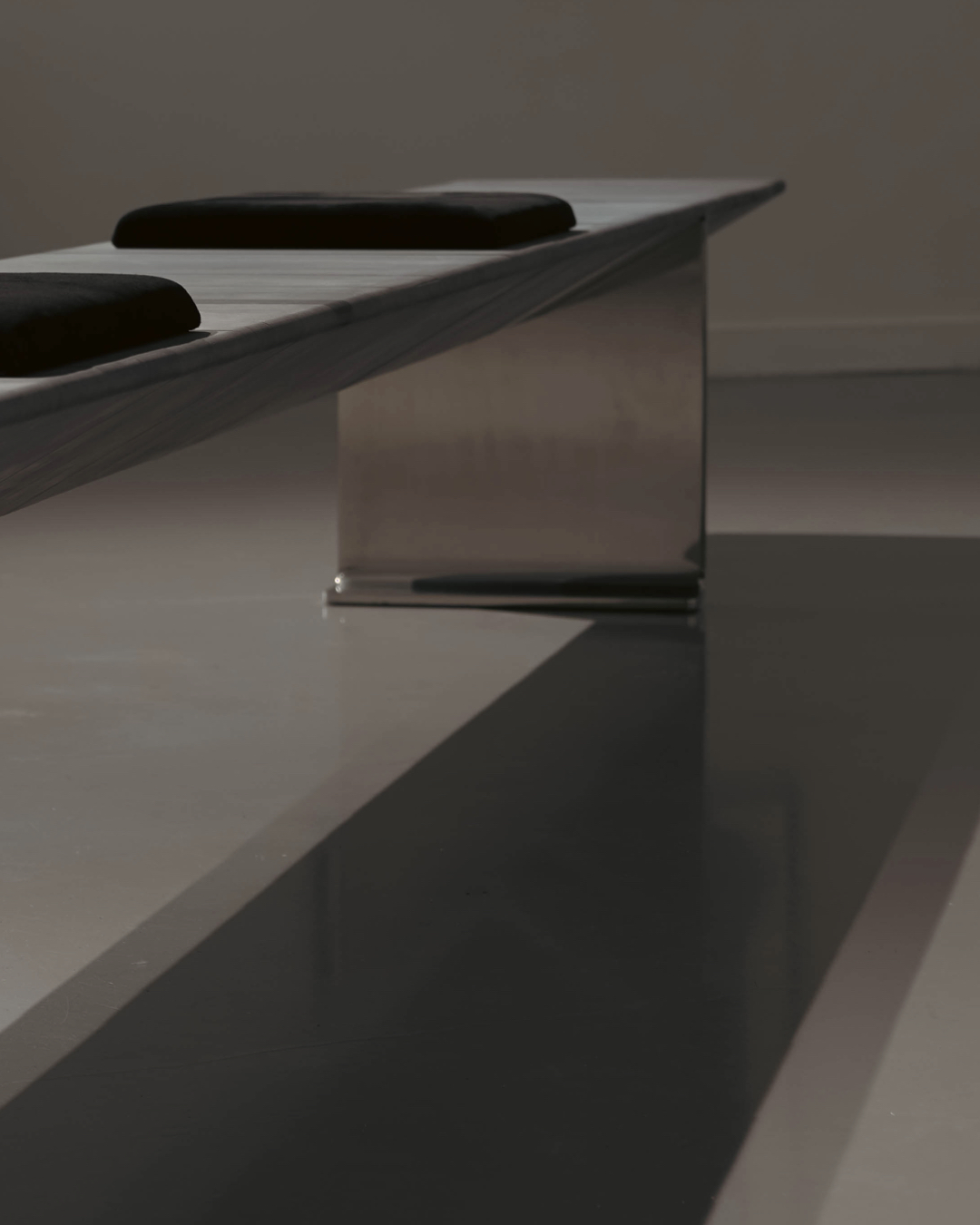

The Bench is conceived as both infrastructure and object. Its form is defined by the repetition of triangular slate elements, producing a rhythm that reads simultaneously as structure and surface. The honed finish invites physical interaction, while the geometry provides a stable and comfortable seating condition. The bench operates across scales, functioning equally within civic space and landscape, without relying on ornament or applied detail.

Valentia Slate one of only two Heritage stones available in Ireland is inherently durable, with an exceptionally low water absorption (≈0.1%) and exceptionally high compressive strength in the range of over 142 to 190MPa. By comparison, typical structural concrete ranges between 30–40 MPa, making Valentia Slate approximately five times stronger in compression. The stone is taken directly from the earth , worked out of the ground , not crushed, milled and fired nor reconstituted . The only process is to shape it, it is designed for long-term use, materially, structurally, and socially.

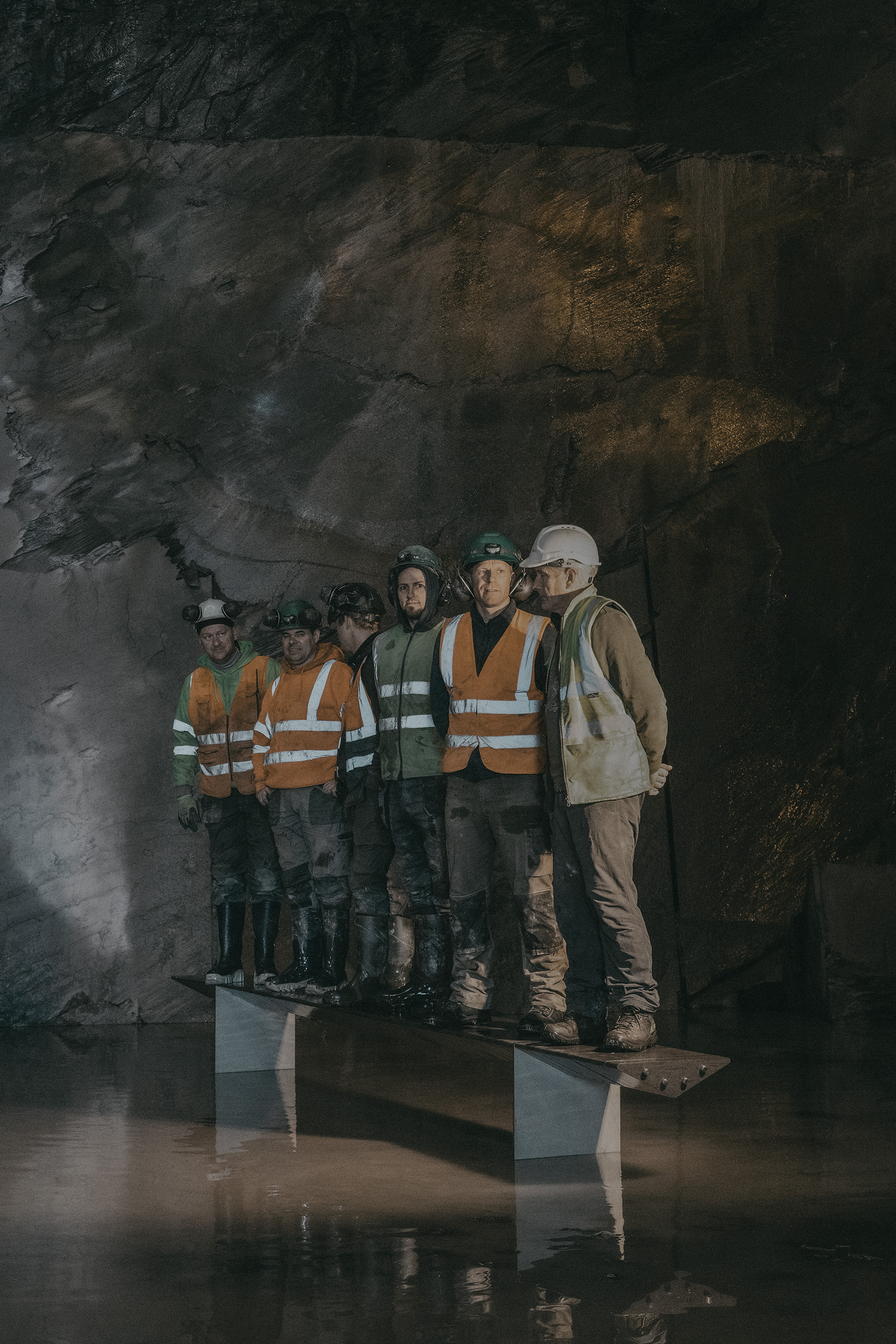

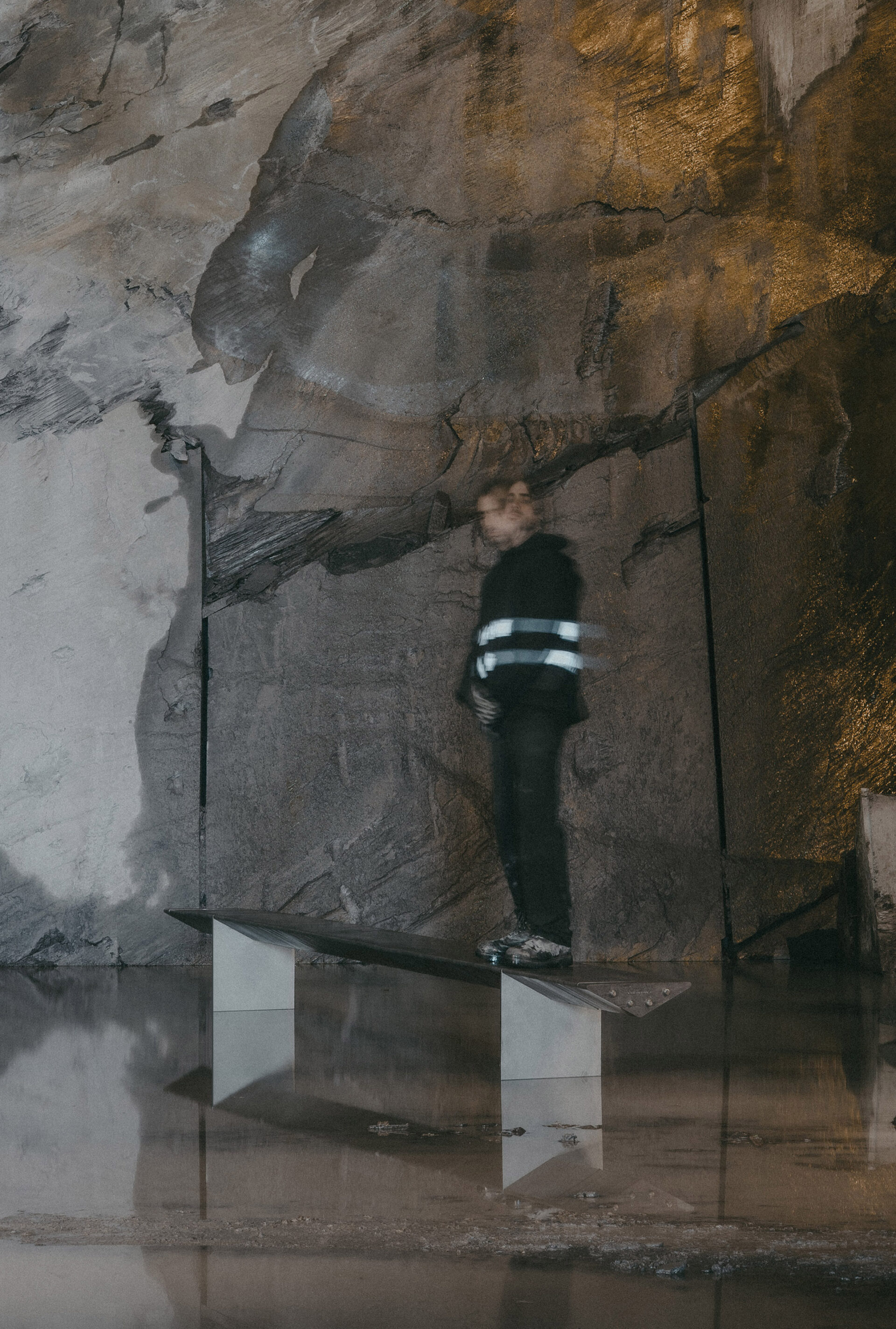

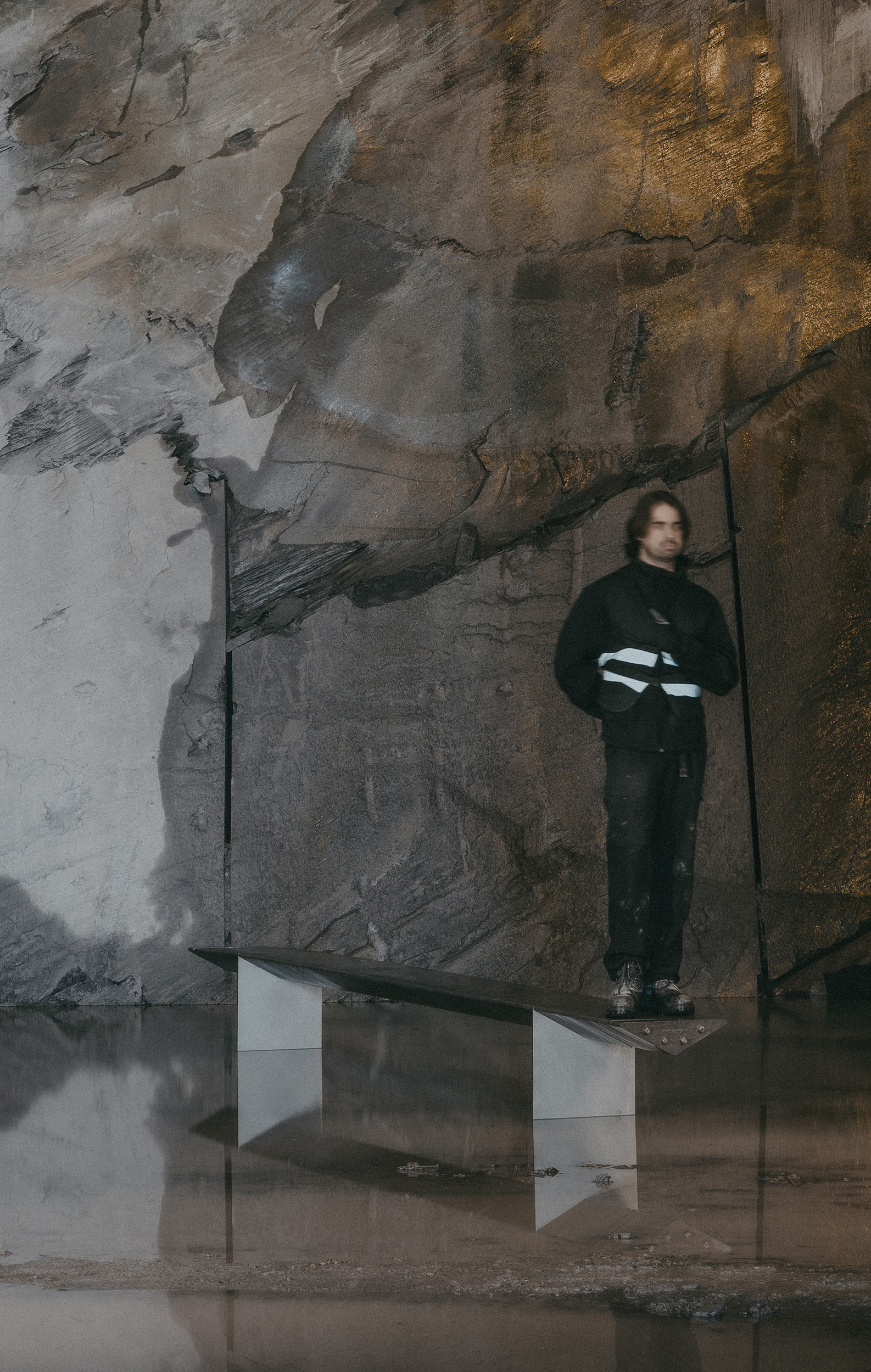

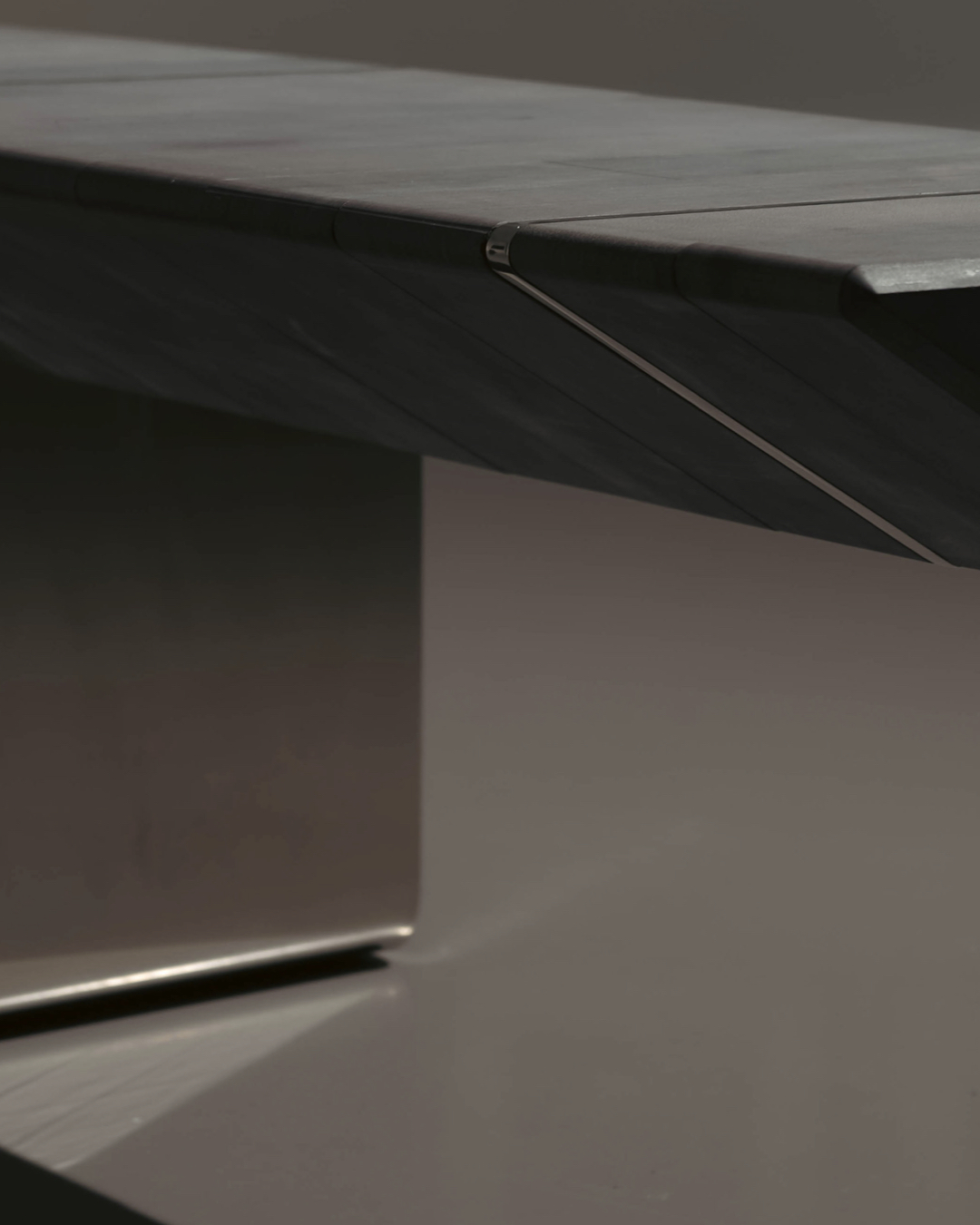

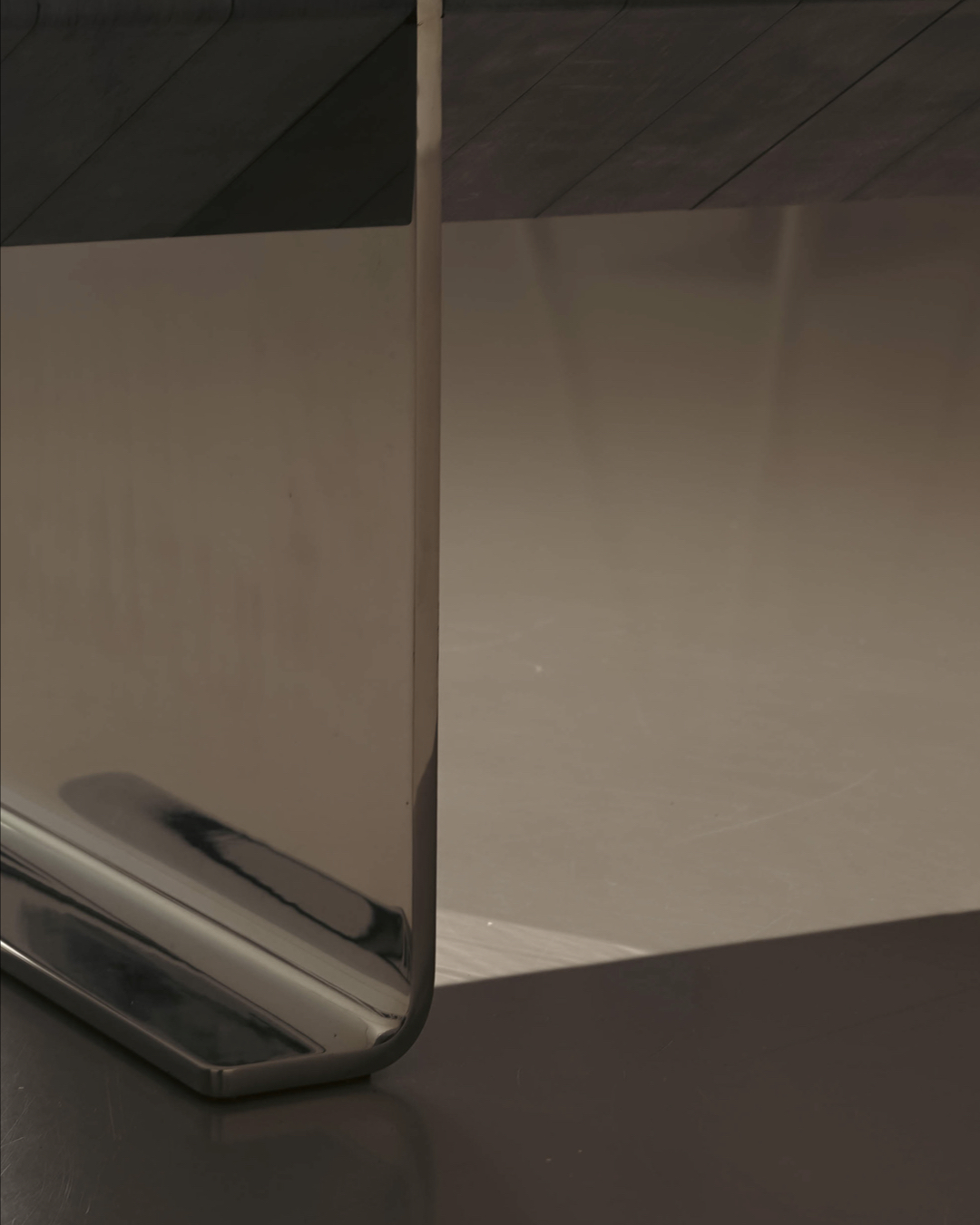

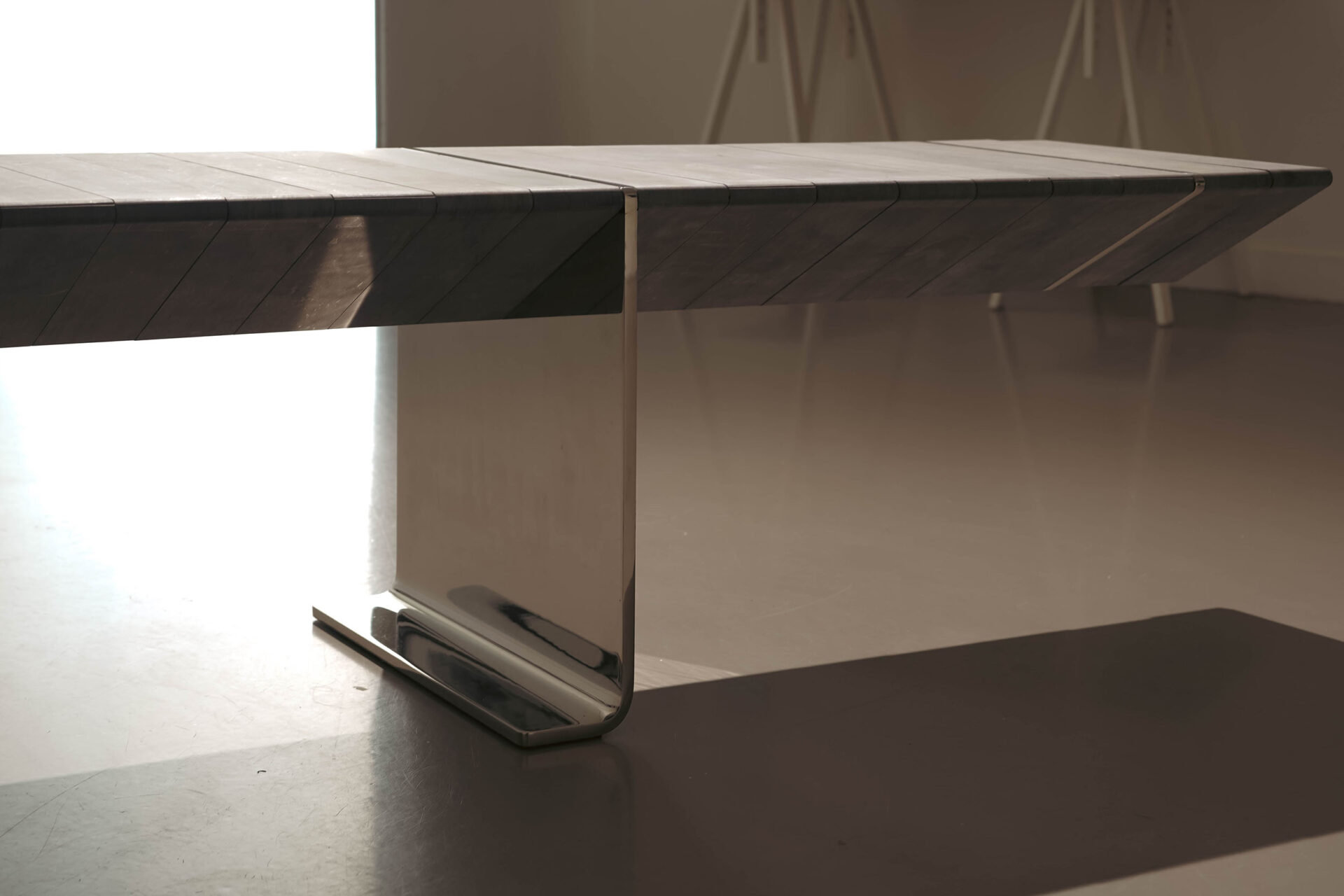

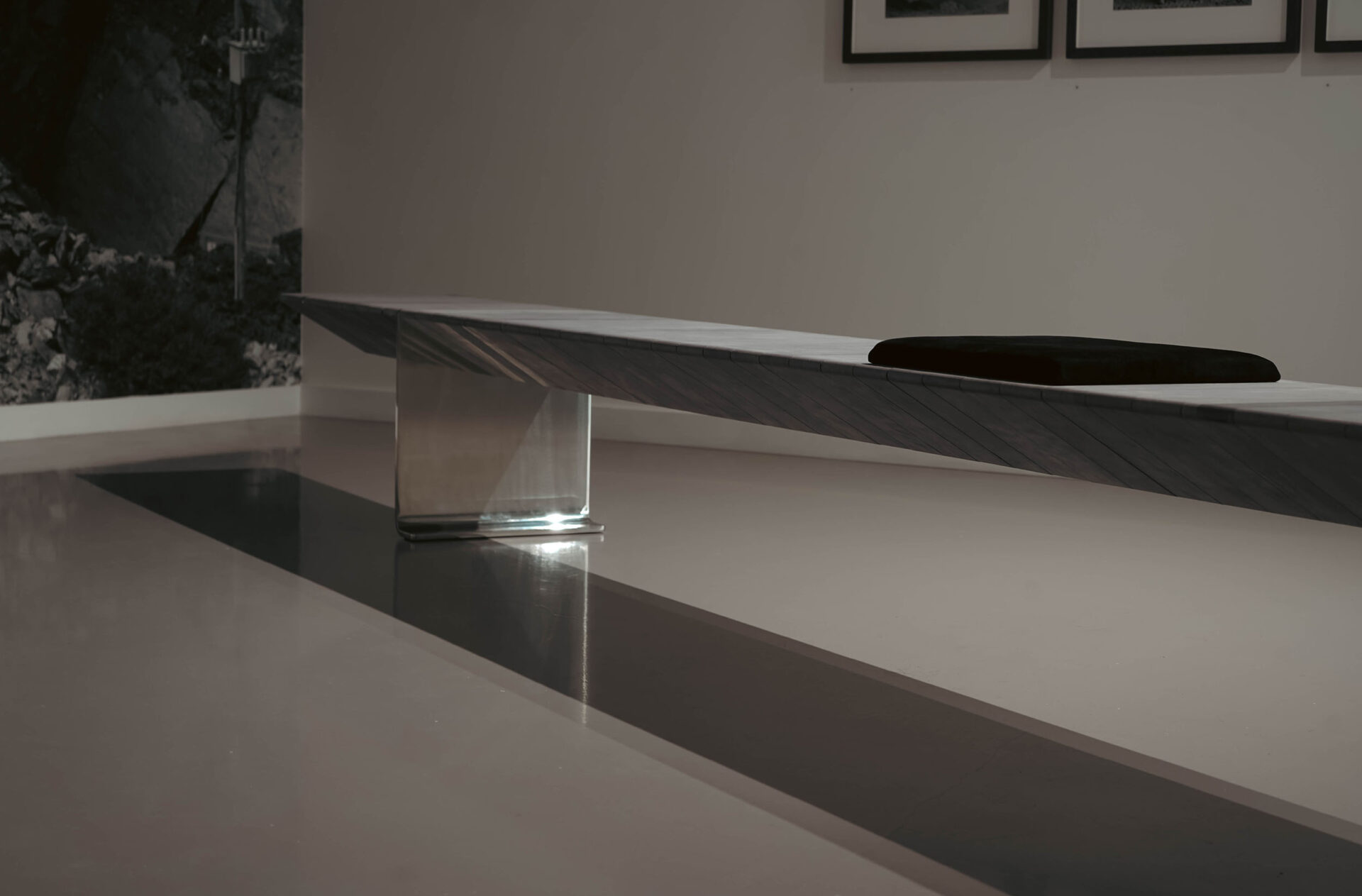

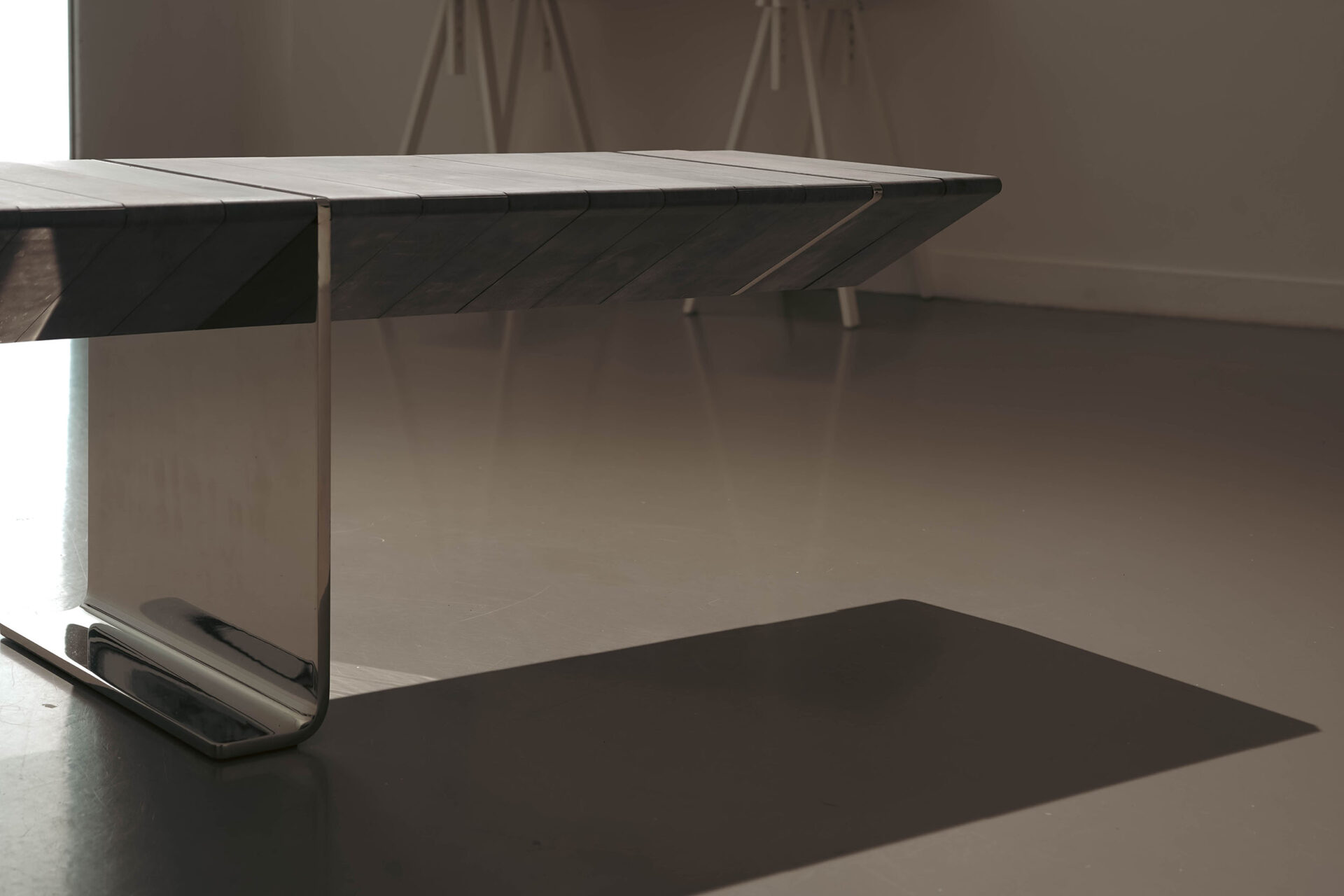

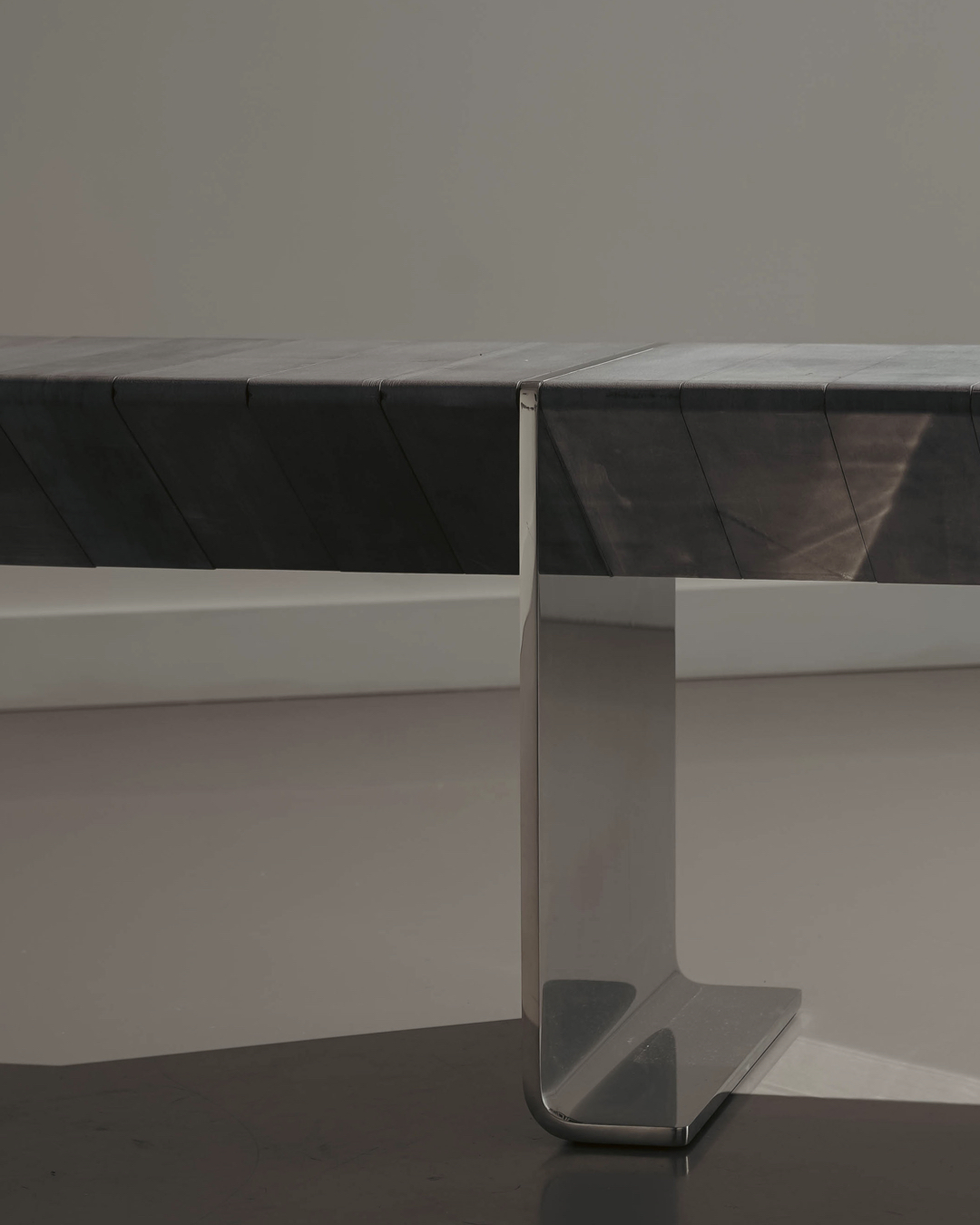

The performance of the bench is driven by the structural properties of Valentia slate and its integration with light optimized stainless steel components. A static proof load of 1,250 kg was applied to the bench, with no damage to the slate or connections with the bench returning undamaged to its original shape. This demonstrates both the strength and resilience of the system under increased load conditions safely exceeding typical use.

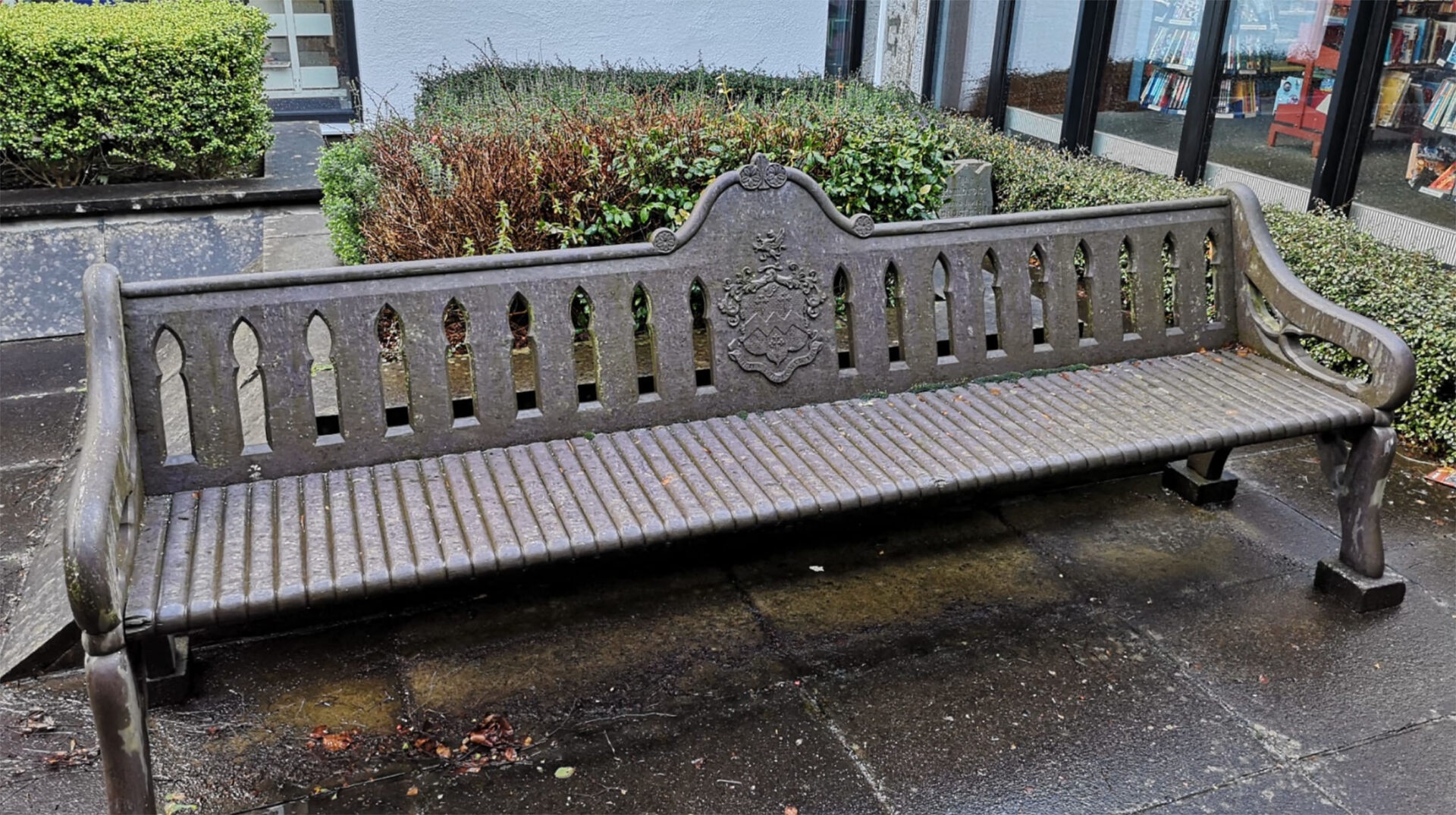

The design draws from a historic Valentia slate 3 meter bench dating to the early 1900s, located in the courtyard of Tralee Library, Kerry. Rather than replicate the original, The Valentia Slate Bench reinterprets it through contemporary fabrication methods and structural thinking. The project establishes a continuity between traditional material use and present-day architectural application.

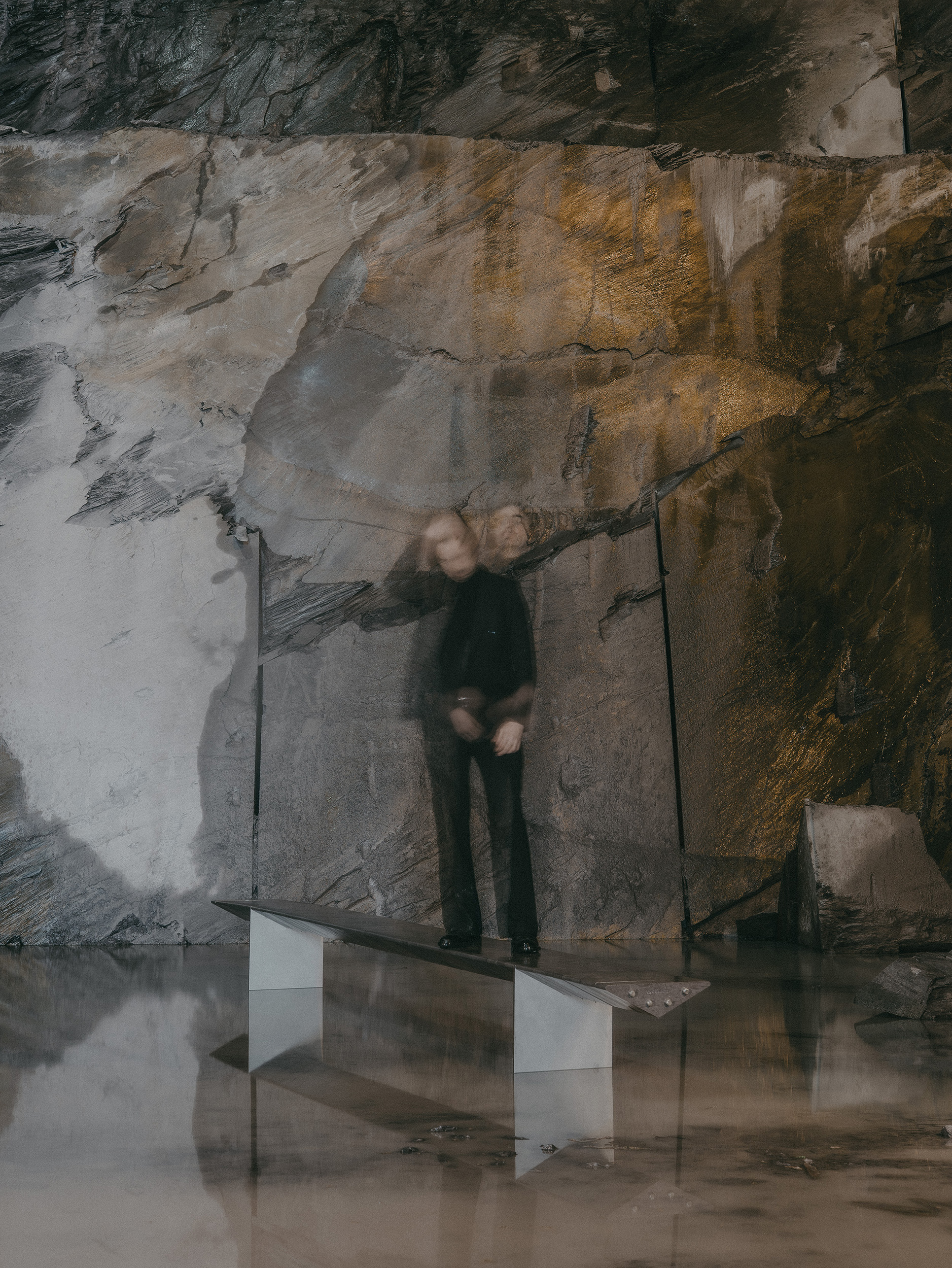

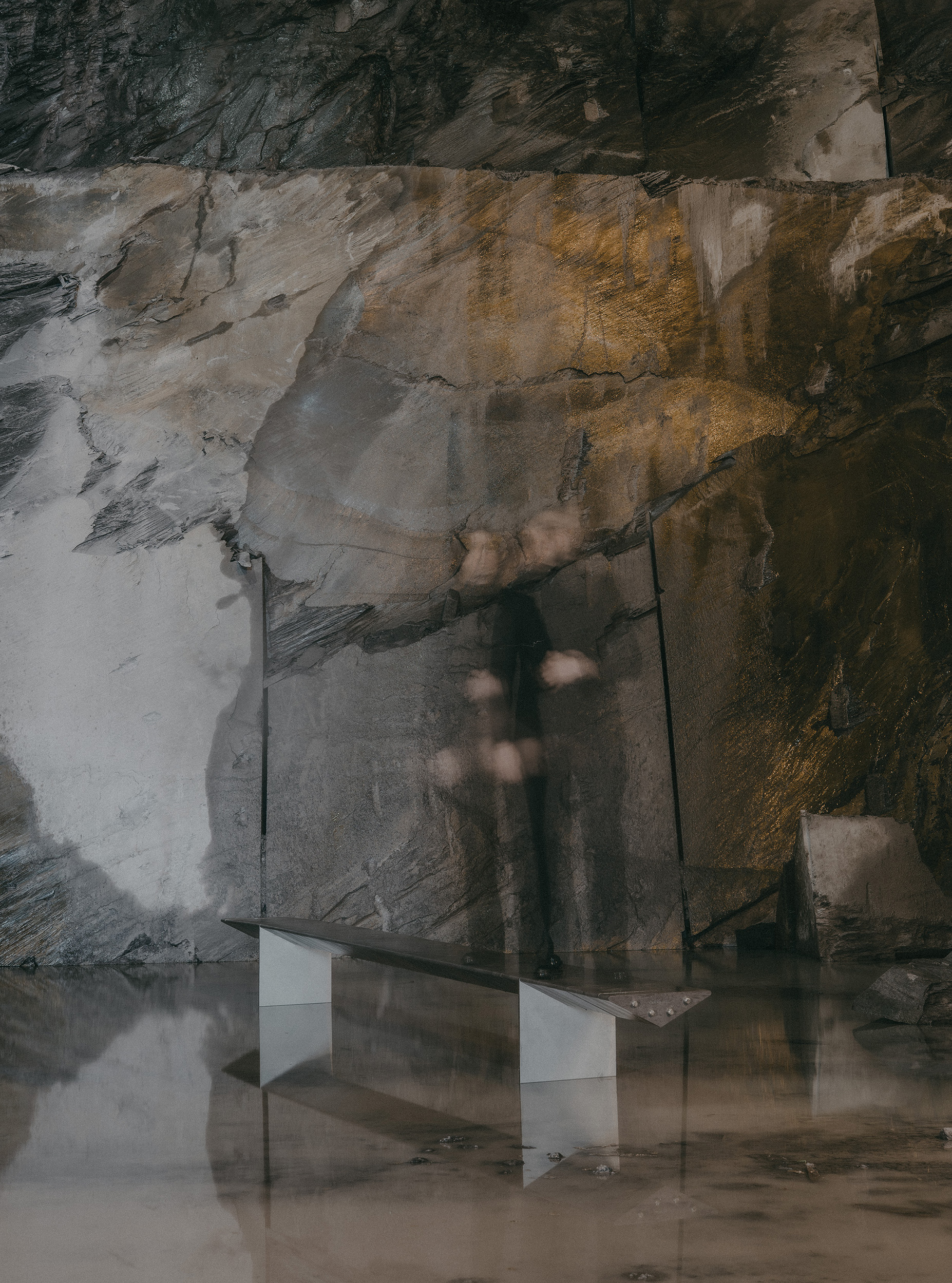

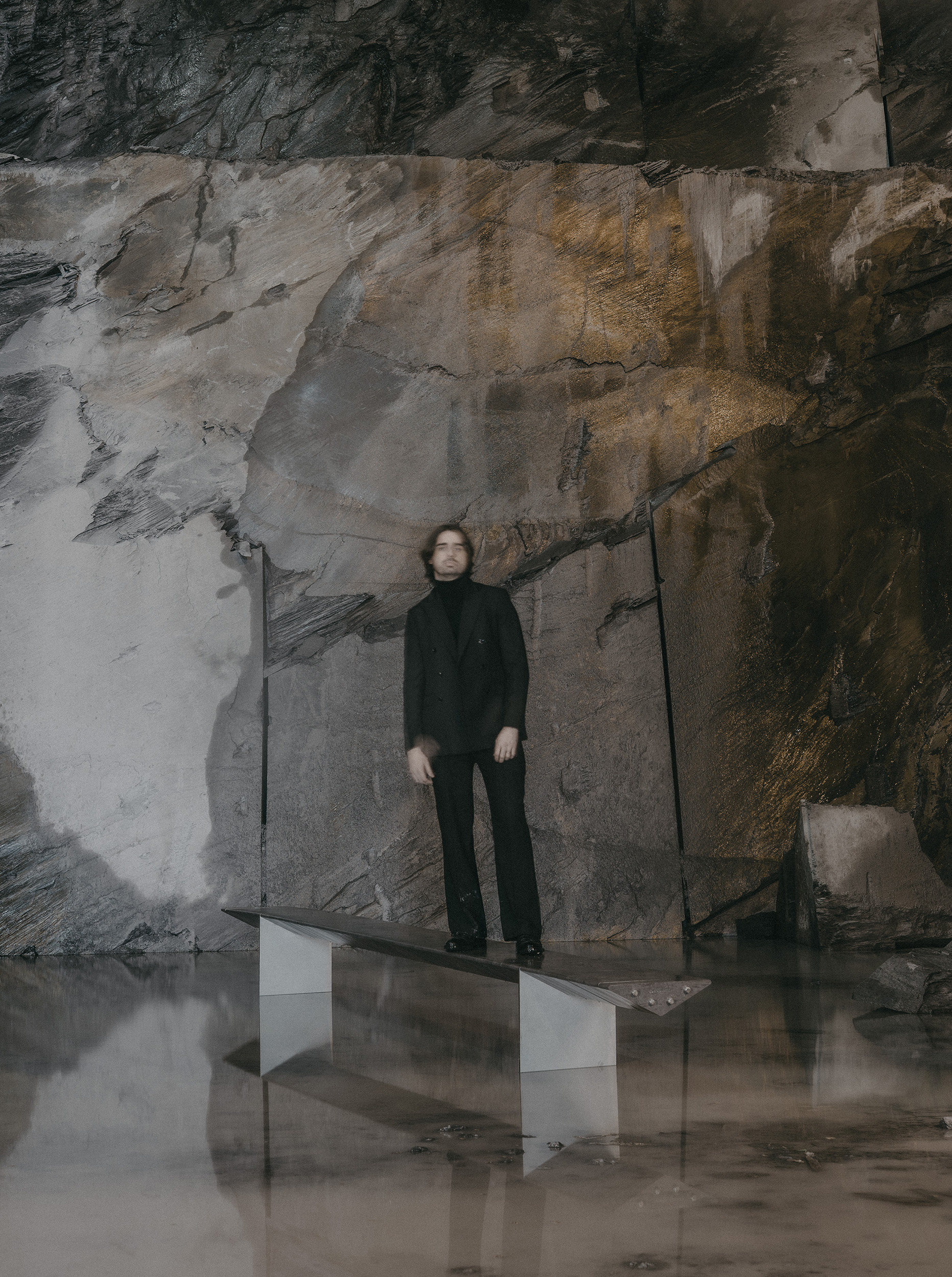

The stone for this bench was quarried and extracted by the team at Valentia Slate, Valentia Island. Special thanks to Dr Aidan Forde, geologist and quarry owner, who worked closely with me during the design and production process. The quarry team included Remigijus Freitakas, Dermot Keating (Quarry Manager), Pranas Bernotas, Vidmantas Duda, and Gediminas Genčius, with particular thanks to Gintautas Minkevičius for his craftsmanship and hands-on assistance during assembly. Marine-grade stainless steel components, including laser cutting and threading of the rods, were provided by Justin Owens and team at laserprofiling.ie. Structural Engineer Peter Flynn is involved in supporting the Technical design and process development with a desire to optimise. Design by Edwyn James. Photography, film footage, and editing by Edwyn James. Music: Mountains by Hans Zimmer.
